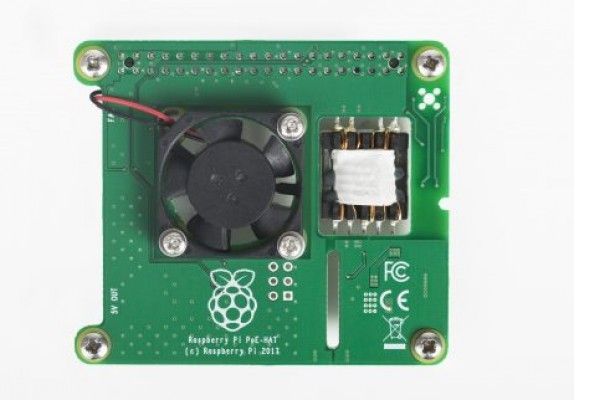

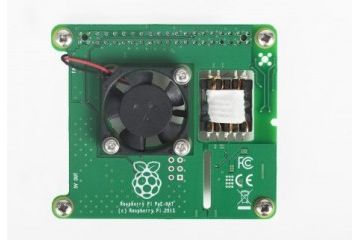

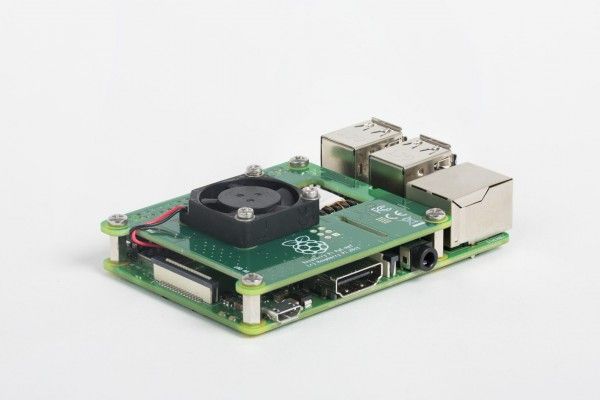

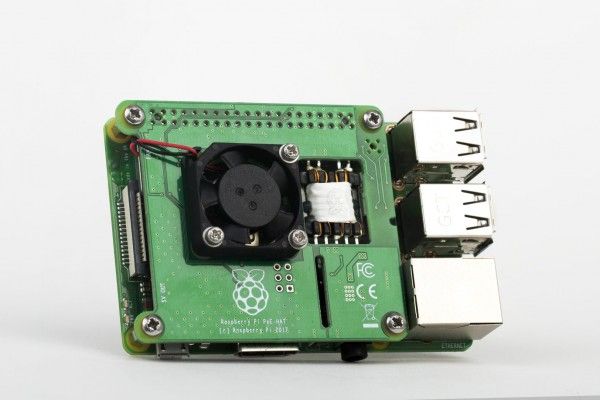

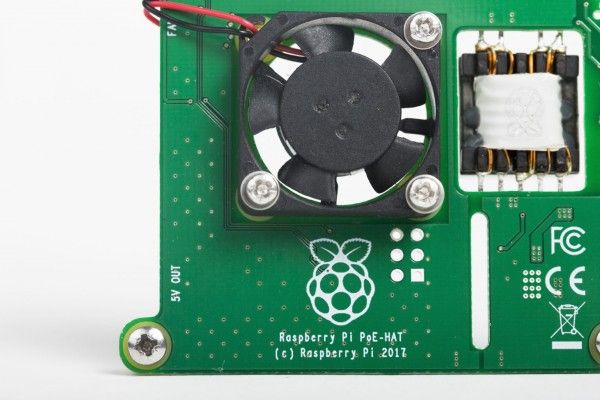

POWER OVER ETHERNET (POE) HAT FOR RASPBERRY PI 3 MODEL B+, RPI3-MODBP-POE

24,28 €

The official Power over Ethernet (PoE) add-on board for the Raspberry Pi 3 Model B+. Use this HAT to power a Raspberry Pi via an Ethernet cable, removing the need for a separate power supply, an ideal solution for embedded and IoT projects. For Raspberry Pi 3 Model B+ and onwards, an 802.3af compliant POE injector, switch or router device is required (not included).



- Power over Ethernet 802.3af compliant

- Class 2 device

- Fully isolate Switched-Mode Power Supply (SMPS)

- 36-56V Input Voltage

- 5V Output Voltage

- Supplies up to 2.5A

- Fan Control

- Plug-and-play compatibility with Raspberry Pi 3 Model B+





Embedded Design & Development, Hobby & Education, Communications & Networking, IoT (Internet of Things)

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
