UNIVERSAL QI WIRELESS CHARGING TRANSMITTER, ADAFRUIT 2162

  • Zaloga DA, 50 kos/ov pri dobavitelju
  • Dobava 7 dni
  • Znamka: ADAFRUIT
  • Id številka: 1042/
38,16 €

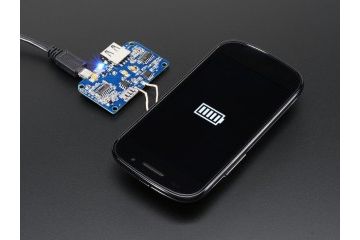

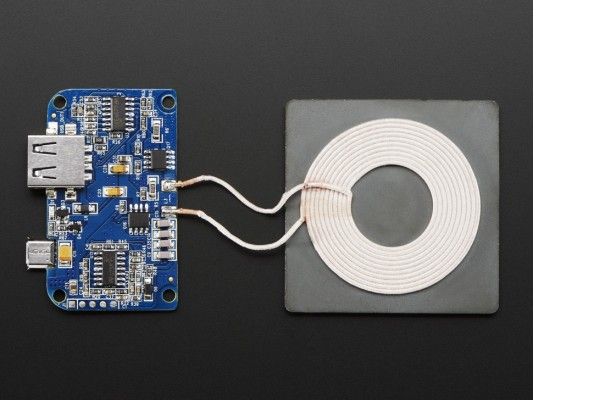

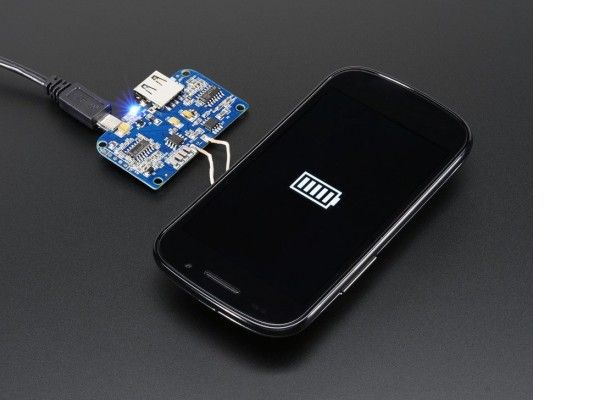

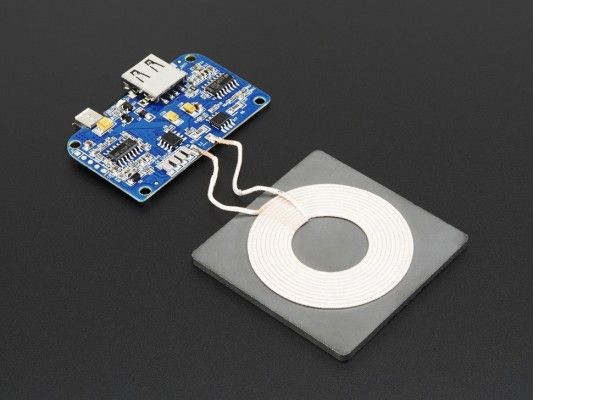

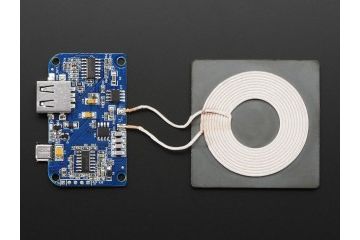

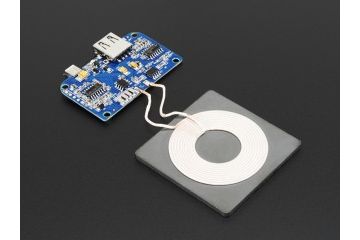

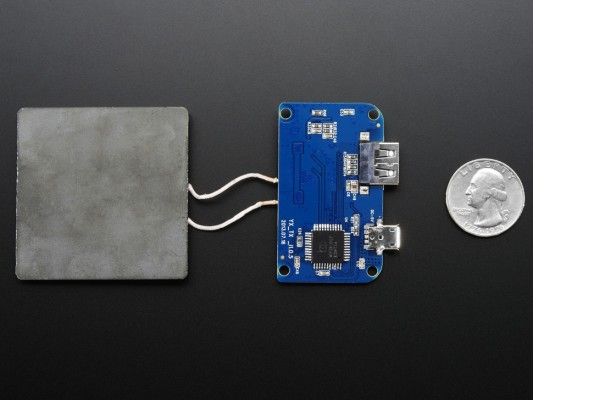

This is a super simple Qi transmitter.  It will work with any standard Qi charger receivers.  You just connect the board to a 5v power supply - either through a micro USB port - then put your device w/ Qi receive onto the base. If you want to 'share' the microUSB power connection, you can also connect direct to the USB-A port



Maximum output is around 5W which is good for most smart phones, basically 1000mA charge at 5V on the other side of the wireless connection.  It has a charging distance of 2-8mm, works with all our Qi charge receivers. You can only use one receiver per transmitter so if you want to charge two Qi devices at once, you'll need 2 transmitters.

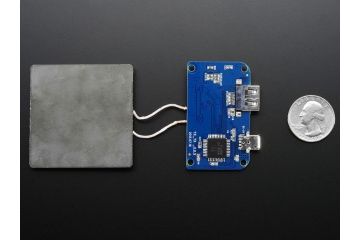

Note: PCB may come in blue or green!



TECHNICAL DETAILS

- Input: 5V

- Input Current: 2A

- Maximum output power of 5W

- Operating Frequency: 100-200kHz

- Charging Distance: 2-8mm

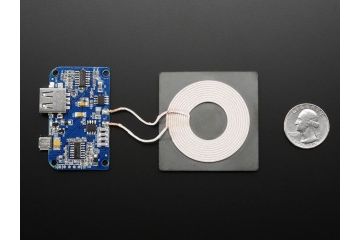

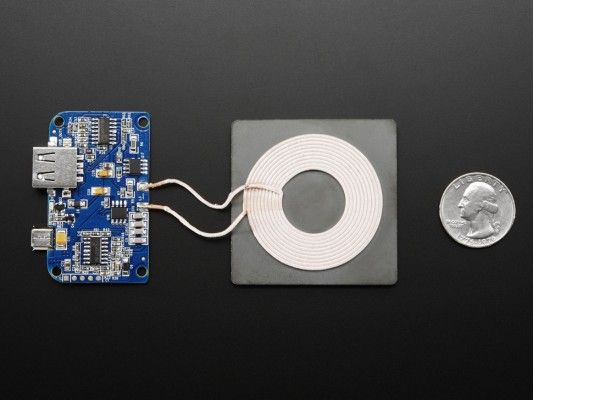

- Charging Plate Dimensions: 53mm x 53mm x 4mm / 2.1" x 2.1" x 0.2"

- PCB Dimensions w/ Components: 55mm x 37mm x 6mm / 2.2" x 1.5mm x 0.2"

- Weight: 47g



ADAFRUIT LEARN

Qi Charging Phone Case & Book

3D Printed Qi Wireless Charging Stand

Qi Wireless Recharging Battery Case

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
