ARDUINO DUE WITHOUT HEADERS, ARDUINO, A000056

  • Zaloga DA, 128 kos/ov pri dobavitelju
  • Znamka: ARDUINO
  • Id številka: 1185/
63,99 €

Product Details

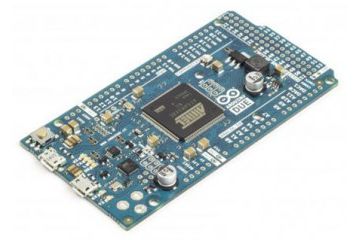

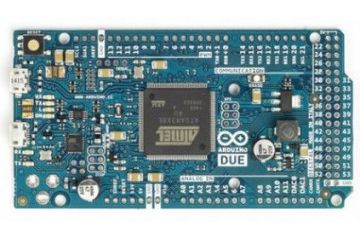

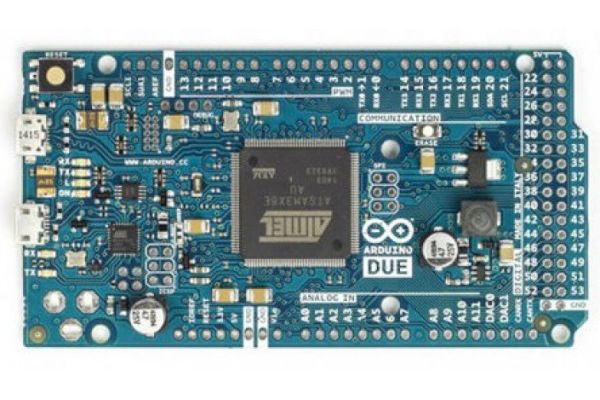

The Arduino Due board features a 32-bit SAM3X8E ARM Cortex-M3 microcontroller and comes in two versions: 7697412 with headers and 8474888 without headers. To power up your Due board and get started, you can either connect it to a computer using a micro USB cable or use an AC-DC adaptor/battery.

Unlike other Arduino boards, the Due can only be powered at 3.3 V.



Features & Benefits of the Arduino Due

•54 digital I/O pins (12 of which can be used as PWM outputs)

•12 analog inputs

•4 UARTs

•84 MHz clock

•96 kBytes of SRAM

•512 kBytes of flash memory

•DMA controller that supports the CPU with high memory tasks

•USB On-The-Go (OTG) connectivity

•2 DAC

•2 TWI

•Power jack

•SPI header

•JTAG header

•Reset & erase button

•Dimensions:101.52 mm x 53.3 mm

•Compatible with Arduino Shields that use 3.3 V power supply and are compliant with the 1.0 Arduino pinout



Specifications



Classification; Development Board

Name; Due

Technology; Computer Board

Processor Family Name; SAM3XE

Processor Part Number; Atmel SAM3X8E

Processor Type; CPU





Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
