TOUCH PHAT, PIMORONI PIM272

  • Zaloga DA, 5 kos/ov pri dobavitelju
  • Dobava 7 dni
  • Znamka: PIMORONI
  • Id številka: 1799/43
14,70 €

Six touch-sensitive buttons to use for whatever your heart desires, with added LEDs (did you expect anything less?)

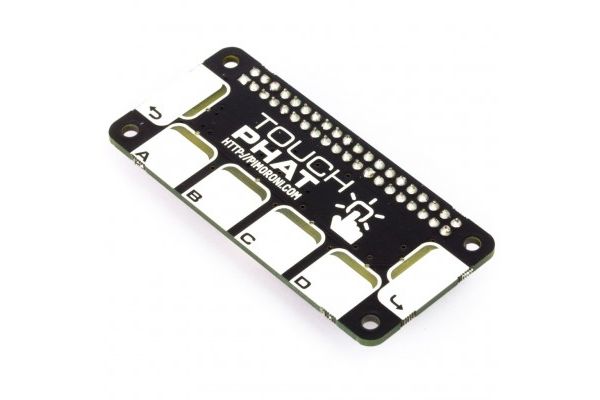

Touch pHAT has six capacitive touch buttons, each with a bright white LED, designed to be completely agnostic about what they're used for. You can even use a dry erase pen to write on the pads to label their function.

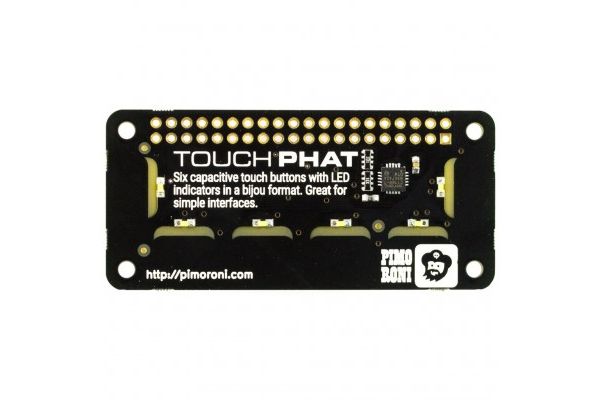

It uses the CAP1166 capacitive touch and LED driver chip. The LEDs have been under-mounted and shine through exposed sections of the PCB to give a pleasing yellow-green glow and a completely smooth top surface!



Use Touch pHAT as a controller for your robot, a controller for your Mote lights, a tiny drum machine, or use it to build a simple game where you have to taps the buttons to repeat the sequence of lights that just flashed.



The MagPi gave Touch pHAT a four star review and said that it "makes it a lot easier to add input buttons to projects".



Features



- Six capacitive touch buttons

- Six bright white under-mounted LEDs

- Microchip CAP1166 capacitive touch and LED driver chip

- Touch pHAT pinout

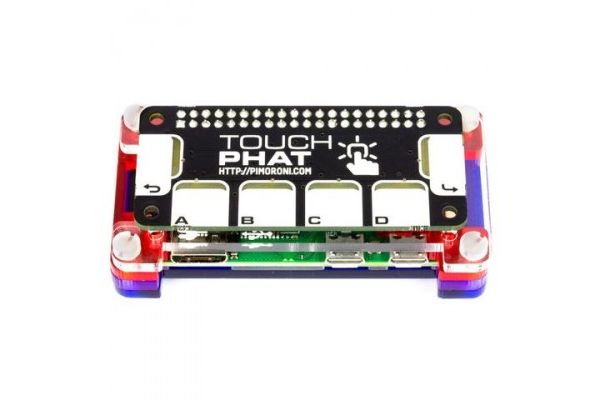

- Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W

- Python library

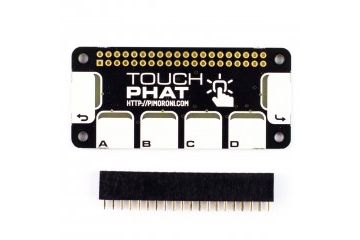

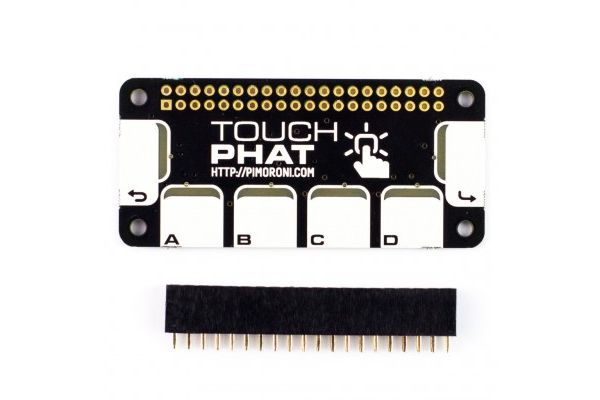

- Female header requires soldering



Software



Pimoroni handy one-line installer will install the Touch pHAT Python library for you. Pimoroni has included a couple of examples too, to show off what you can do with Touch pHAT.







Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
