ADEEPT 46 MODULES ULTIMATE SENSOR KIT FOR RASPBERRY PI 3B+, 3, 2, B+ 150 PAGES PDF GUIDEBOOK, ADEEPT ADR009

  • Zaloga DA
  • Dobava 14 dni
  • Znamka: ADEEPT
  • Id številka: 1850/
121,99 €

Ultimate Sensor Kit for Raspberry Pi, with a complete set of Raspberry Pi's most common and useful sensor modules. The kit has 46 sensor modules packing in a beautiful plastic box. Adeept also prepared a tutorial (PDF) for you. For each module, there is clear connection diagram, Fritzing breadboard images and sample code.



We believe with this Sensor Modules + software support, you will be able to become expert programmer (developer) very soon. So don't wast time, just get this kit, and start your project right away!



Features:

- Designed by Adeept, 46 sensor modules for you to learn Raspberry Pi, electronic, IoT and programming.

- A detailed user manual/guidebook(PDF, about 150 Pages) with 40 lessons and two versions code(Python && C) are provided, it is easy for you to learn Raspberry Pi and programming. After you purchase, just send an email to info@galago.si, then we will show you how to access the guidebook and C && Python code, and so on.

- Beautiful project box, it is a wonderful gift for children.

- Raspberry Pi is NOT included.



Tutorial Link:

https://www.adrive.com/public/CHXnm8/Adeept_Ultimate_Sensor_Kit_for_RPi_V1.3.zip



Lessons:

About the Raspberry Pi

Raspberry Pi Pin Numbering Introduction

Raspberry Pi GPIO Library Introduction

How to Use wiringPi and RPi.GPIO

Lesson 1 Blinking LED

Lesson 2 Controlling an LED by Button

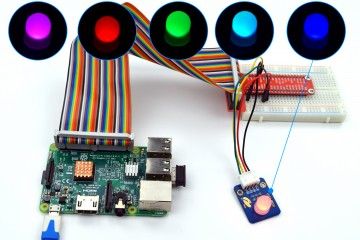

Lesson 3 Controlling an RGB LED by PWM

Lesson 4 Active Buzzer

Lesson 5 Passive Buzzer

Lesson 6 Controlling an LED by Hall Sensor

Lesson 7 Controlling an LED by Reed

Lesson 8 How to Use a Relay

Lesson 9 Laser Transmitter

Lesson 10 Laser Receiver

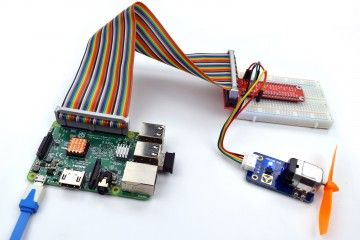

Lesson 11 How to Control a DC Motor

Lesson 12 Controlling an LED by Limit Switch

Lesson 13 Controlling an LED by Vibration Switch

Lesson 14 Rotary Encoder

Lesson 15 Controlling an LED by Touch Button

Lesson 16 Movement Detection Based on PIR

Lesson 17 Flame Sensor

Lesson 18 Line Finder

Lesson 19 Measuring the Temperature via DS18B20

Lesson 20 Temperature & Humidity Sensor - DHT-11

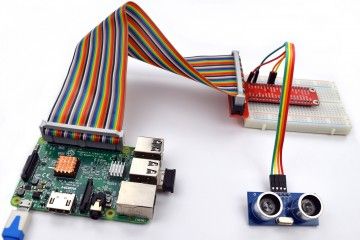

Lesson 21 Measuring the Distance

Lesson 22 Acceleration Sensor - ADXL345

Lesson 23 Barometric Pressure Sensor - BMP180

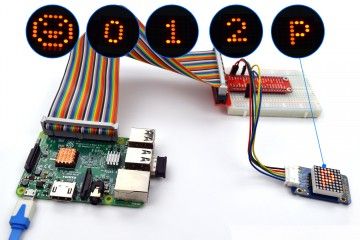

Lesson 24 Dot-matrix Display

Lesson 25 LED Bar Graph

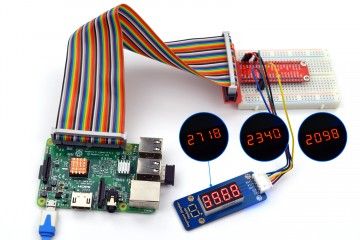

Lesson 26 How to Drive the Segment Display

Lesson 27 Potentiometer

Lesson 28 Photoresistor

Lesson 29 Thermistor

Lesson 30 Water Level Detection

Lesson 31 Soil Moisture Detection

Lesson 32 MQ-2 Gas Sensor

Lesson 33 Sound Sensor

Lesson 34 PS2 Joystick

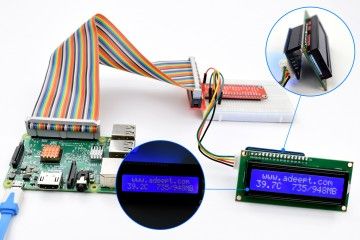

Lesson 35 LCD1602 Display

Lesson 36 How to Make a Simple Thermometer(1)

Lesson 37 How to Make a Simple Thermometer(2)

Lesson 38 Make a Distance Measuring Device

Lesson 39 How to Make a Simple Voltmeter(1)

Lesson 40 How to Make a Simple Voltmeter(2)

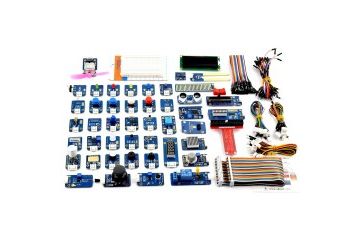

Package List:

1x LCD1602

1x I2C Interface Module

1x DHT-11 Temperature and humidity Sensor Module

1x DS18B20 Digital temperature Sensor Module

1x Ultrasonic Distance Sensor Module

1x ADC0832 Module

1x BMP180 Barometer Sensor Module

1x ADXL345 Accelerometer

1x PS2 Joystick Module

1x Relay Module

1x DC Motor Module

1x Segment Display Module

1x 8x8 LED Matrix Module

1x Potentiometer Module

1x Slide Potentiometer Module

1x Rotary Encoder Module

1x PIR Sensor Module

1x MQ-2 Gas Sensor Module

1x LED Bar Module

1x Active Buzzer Module

1x Passive Buzzer Module

1x MIC Module

1x Touch Button Module

1x Line Finder Module

1x Flame Sensor Module

1x Vibration Sensor Module

1x CM Module

1x Water Level Sensor Module

1x Soil Moisture Sensor Module

1x Photoresistor Module

1x Analog Temperature Sensor(Thermistor Module)

1x Hall Sensor Module

1x Limit Switch Module

1x Reed Module

1x RGB LED Module

1x Laser Transmitter Module

1x Laser Receiver Module

4x Button Module

4x LED Module

1x GPIO Extension Board

1x 40P GPIO Cable

8x 3-Pin Wires

5x 4-Pin Wires

3x 5-Pin Wires

1x Hookup Wire Set

1x 2-Pin Female to Female Wires

20x Male to Female Jumper Wires

1x Band Resistor Card

1x Breadboard

1x Project Box





Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
