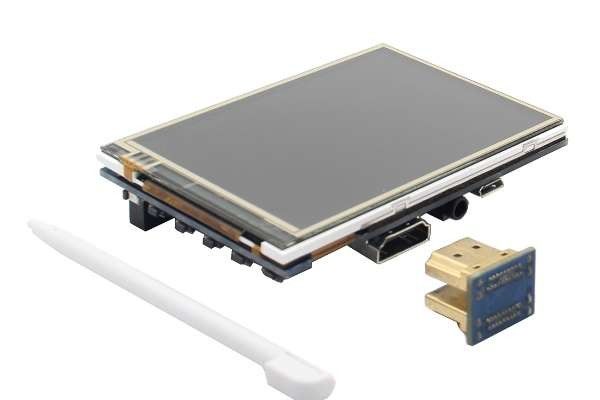

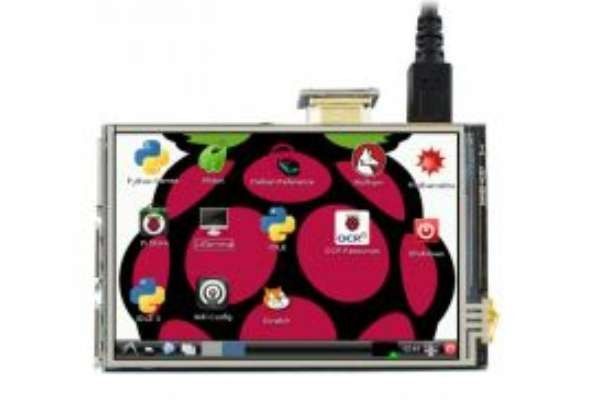

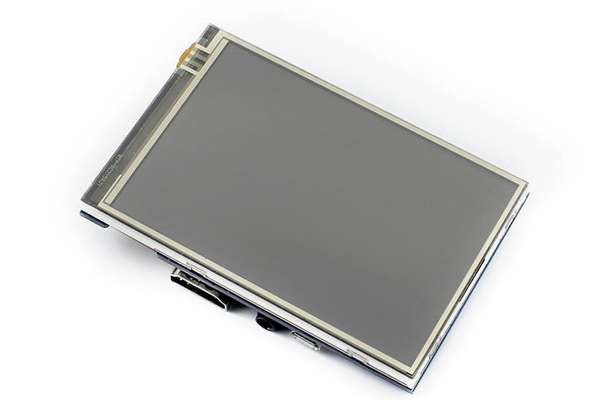

3.5INCH HDMI LCD, 480X320, IPS, WAVESHARE, 12824

53,31 €

Količina

Features

480x320 hardware resolution, software configurable up to 1920x1080
Resistive touch control
IPS technology, high quality and perfect displaying from very wide viewing angle
Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
Supports FBCP software driver as well, allows to config software resolution and set up dual-display
Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
Supports 100-level backlight adjustment
Supports HDMI audio output

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24	NC	NC
6, 9, 14, 20, 25	GND	Ground
19	TP_SI	SPI data input of Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
23	TP_SCK	SPI clock of Touch Panel
26	TP_CS	Touch Panel chip selection, low active

Click here for more information.

Processor

Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz

Memory

512MB LPDDR2 SDRAM

Connectivity

2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE

Access

Extended 40-pin GPIO header

Video & sound:

1 × full size HDMI

Dolžina

99 mm

Širina

207 mm

Višina

208 mm
