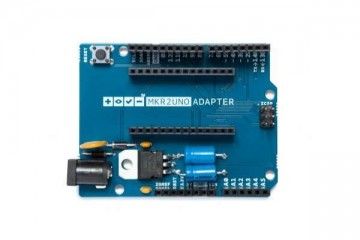

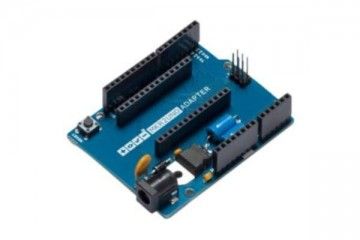

MKR2UNO ADAPTER, ARDUINO TSX00005
- Zaloga DA, 25 kos/ov pri dobavitelju
- Dobava 5 dni
- Znamka: ARDUINO
- Id številka: 2020/
The MKR2UNO Adapter allows you to turn your Arduino UNO form factor based project into a MKR based one without too much effort! You can so upgrade your project with a powerful board with integrated LiPo battery charger.
Tehnical specification
| Operating Voltage | 3.3V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limit) | 6-16V |
| Analog Input Pins | 6 |
| Analog Output Pins | 1 |
| Digital I/O Pins | 14 |
| DC Current for 3.3V Pin | 700 mA |
| DC Current for 5V Pin | 00 mA |
| Length | 68.6 mm |
| Width | 53.4 mm |
| Weight | 24 g |
All the pins on the MKR2UNO Adapter are wired one to one from the MKR to the UNO form factor with some exception:
| MKR form factor pin | UNO form factor pin |
| 0 | 13 |
| 1 | 10 |
| 13 | 0 |
| 14 | 1 |
Specifikacije
Glavno
Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI
Dimenzije
Dolžina
99 mm
Širina
207 mm
Višina
208 mm
