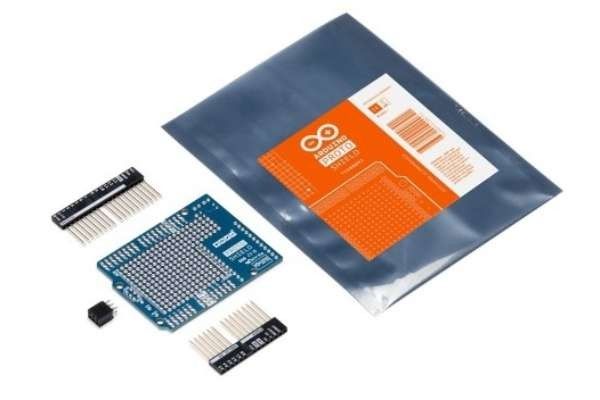

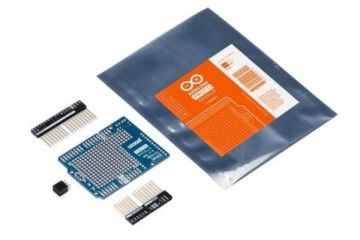

PROTO SHIELD REV3 (UNO SIZE), ARDUINO TSX00083

  • Dobava 5 dni
  • Znamka: ARDUINO
  • Id številka: 2033/
18,65 €

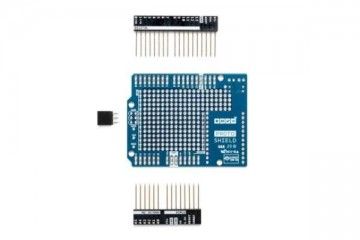

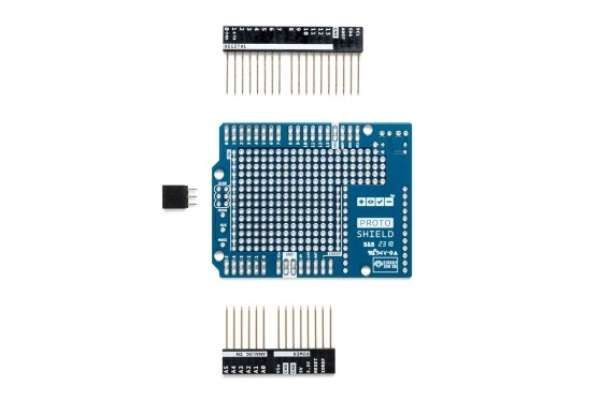

The ProtoShield makes it easy for you to design custom circuits. You can easily solder TH or SMD ICs on the prototyping area to test them with your Arduino board. The SMD area is designed for a maximum of 24 pins SOIC integrated circuit and the TH area contains a lot of space for the needed components around your project. You can even stick a mini breadboard (not included) on the protoarea for solderless operation. The proto area includes also two power lines (IOREF and GND), two LEDs pads and SPI signals breakout pads for boards with SPI only on the ICSP header like Zero.

Key features:

  • 1.0 Arduino Pinout
  • 1 ICSP Connector footprint
  • 2 LEDs and resistor footprint
  • IOREF and GND power lines
  • SPI signals pads
  • 24 pin SMD footprint (50 mils pitch)

More information

SPI Library



Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
