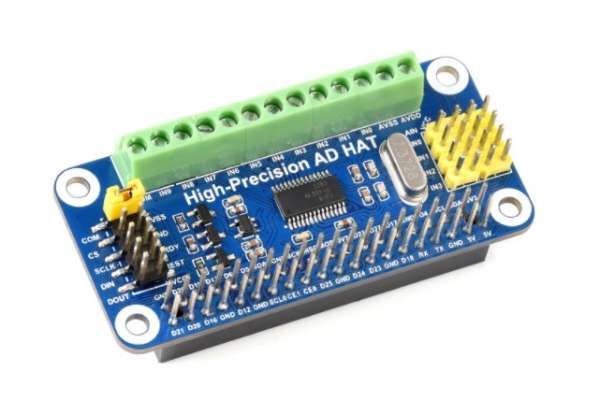

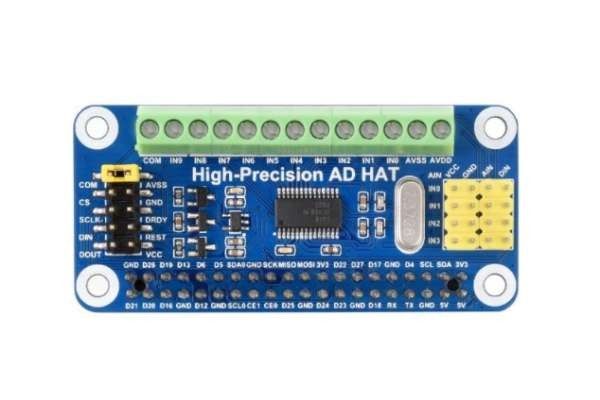

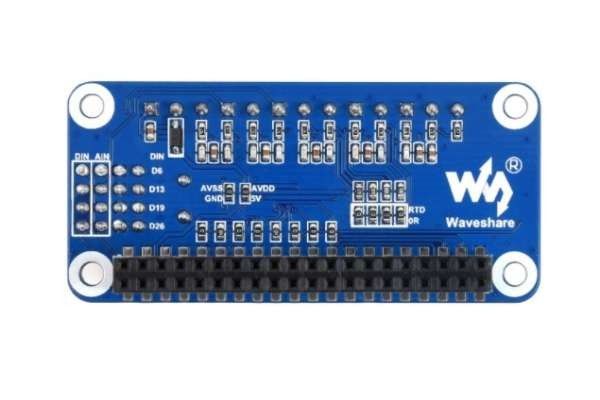

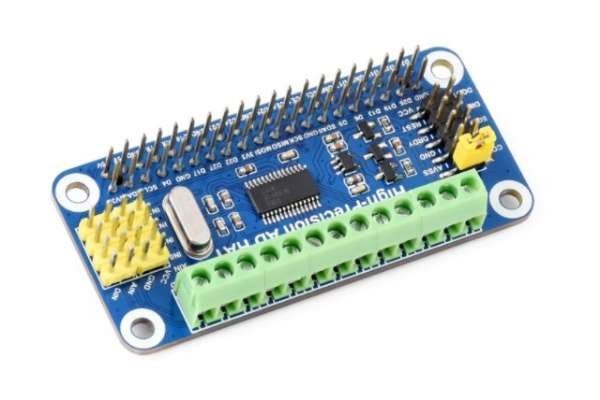

HIGH-PRECISION AD HAT FOR RASPBERRY PI, ADS1263 10-CH 32-BIT ADC, WAVESHARE 18983
- Zaloga DA, 1 kos/ov
- Dobava 10 dni
- Znamka: WAVESHARE
- Id številka: 2100/
Features
- Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
- Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
- Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
- Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
- Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
Specifications
| RESOLUTION | 32 Bits |
| INPUT CHANNELS | 10 |
| SAMPLING RATE (MAX) | 38.4 kSPS |
| PGA MAGNIFICATION (MAX) | 32 |
| BUS | SPI |
| STRUCTURE | Delta-Sigma |
| INPUT TYPE | differential, single-end |
| REFERENCE VOLTAGE | internal, external |
| INPUT VOLTAGE RANGE (MAX) | 2.5V, 5V |
| INPUT VOLTAGE RANGE (MIN) | -2.5V, 0V |
Outline dimensions
More information
Specifikacije
Glavno
Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI
Dimenzije
Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
