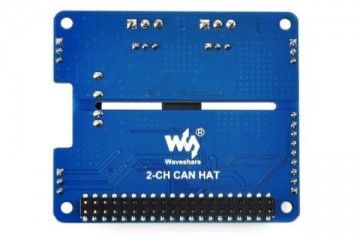

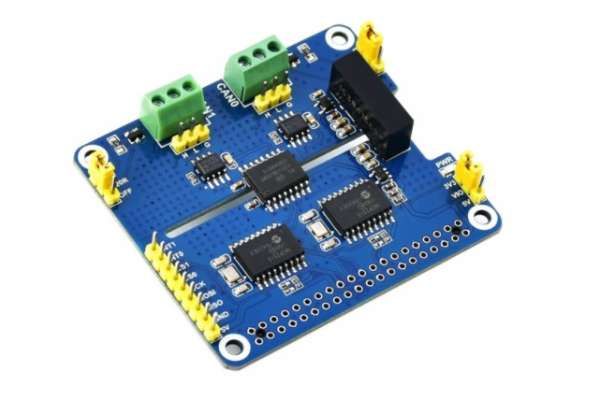

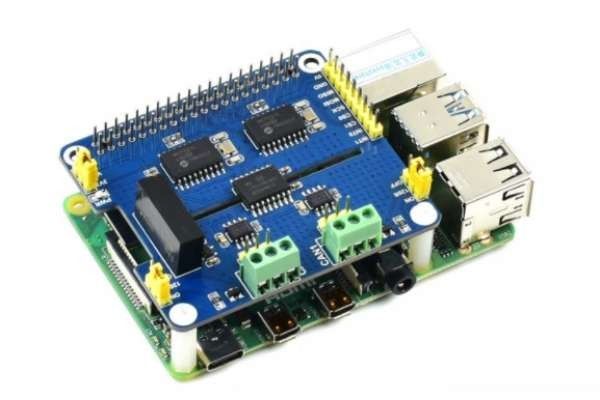

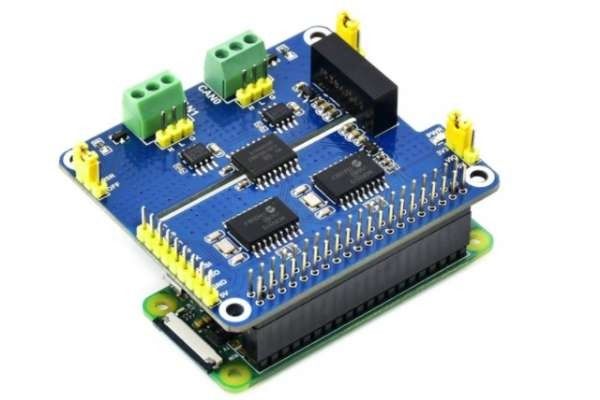

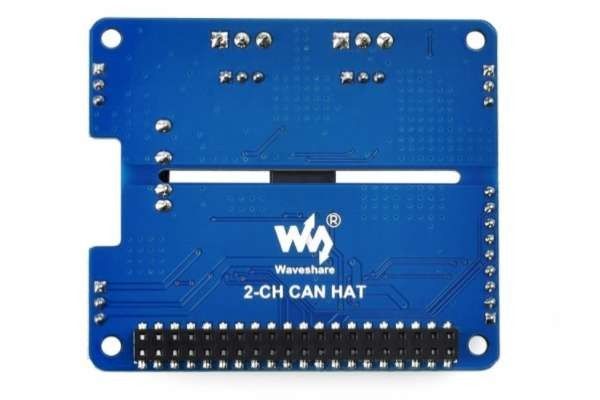

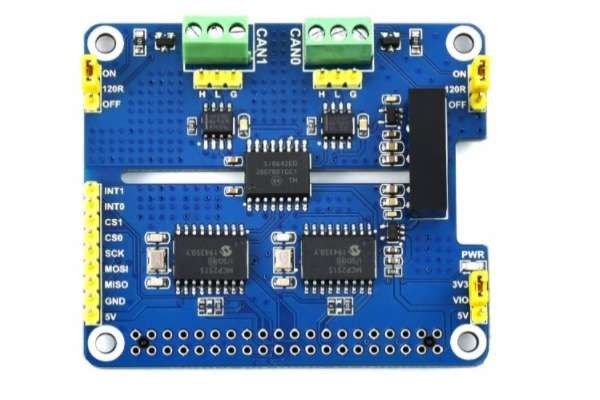

2-CHANNEL ISOLATED CAN EXPANSION HAT FOR RASPBERRY PI, DUAL CHIPS SOLUTION, WAVESHARE 17912
- Zaloga NE
- Znamka: WAVESHARE
- Id številka: 2108/
Features
- Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
- Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
- Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
- Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ω terminal resistor, configured by jumper
- Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
Specifications
| CAN CONTROLLER | MCP2515 |
| POWER SUPPLY VOLTAGE | 5V |
| CAN TRANSCEIVER | SN65HVD230 |
| LOGIC LEVEL VOLTAGE | 3.3V/5V |
| CONTROL BUS | SPI |
| DIMENSIONS | 65 × 56.5(mm) |
Outilne dimensions
More information
Specifikacije
Glavno
Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI
Dimenzije
Dolžina
99 mm
Širina
207 mm
Višina
208 mm
