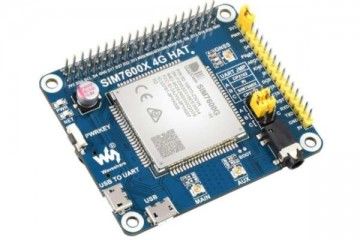

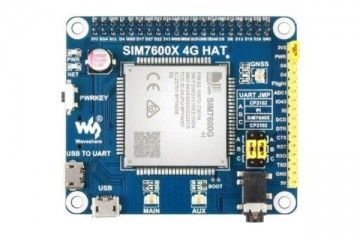

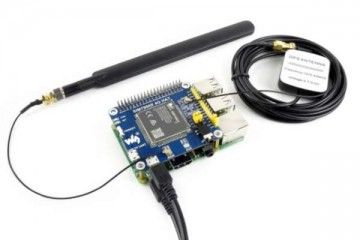

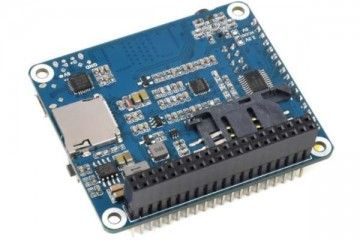

SIM7600G-H 4G HAT FOR RASPBERRY PI, LTE CAT-4 4G - 3G - 2G SUPPORT, GNSS POSITIONING, GLOBAL BAND, WAVESHARE 17372

  • Zaloga DA, 1 kos/ov
  • Dobava 10 dni
  • Znamka: WAVESHARE
  • Id številka: 2119/
105,21 €

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

FREQUENCY BAND

LTE Cat-4LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE 850/900/1800/1900 MHz

GNSS

Satellite systems GPS/Beidou/GLONASS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts <1s

SMS AND AUDIO

SMS Supported types MT, MO, CB, Text, PDU
Storage USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction

OTHER

Power supply 5V
Operating voltage 5V / 3.3V (configured via jumper)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 56.21mm × 65.15mm

Outline dimensions
