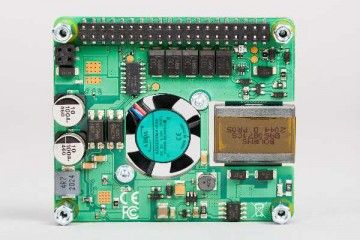

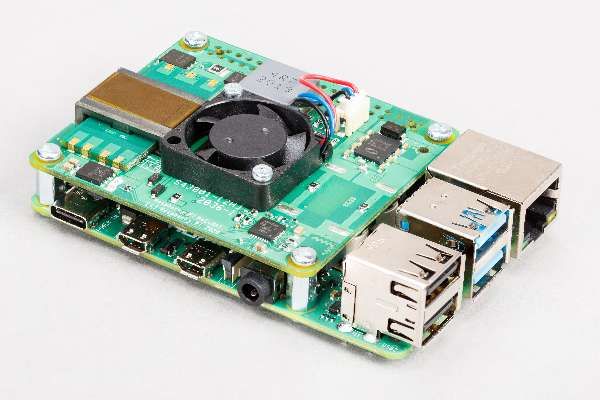

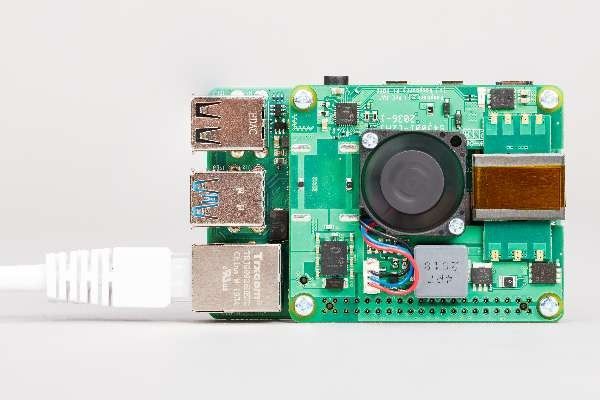

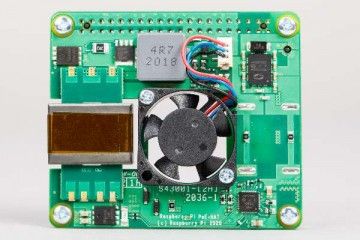

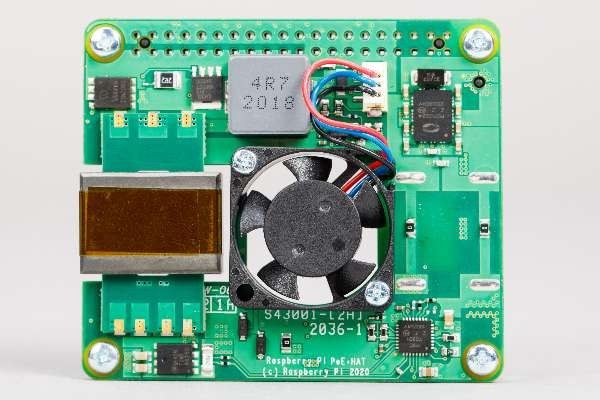

RASPBERRY PI POE+ HAT, SC0468

The Raspberry Pi PoE+ HAT is an add-on board for Raspberry Pi computers with PoE pins, including Raspberry Pi 3B+ and Raspberry Pi 4. It is used to power Raspberry Pi via an Ethernet cable, provided that power-sourcing equipment is installed on the Ethernet network. The HAT also includes a fan that will cool the Raspberry Pi processor.

Specification:

Standard: IEEE 802.3at-2003 PoE

Input voltage: 37–57 V DC, Class 4 device

Output power: 5 V DC/4 A

Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling

Features:  • Fully isolated switched-mode power supply • Fan control

Operating temperature: 0 °C to +50 °C

Production lifetime: The Raspberry Pi PoE+ HAT will remain in production until at least January 2027

Compliance: For a full list of local and regional product approvals, please visit www.raspberrypi.org/compliance

Links:

Product page
Product Brief
