RASPBERRY PI RESPEAKER 2-MICS PI HAT, SEEEDSTUDIO 107100001

  • Zaloga DA, 160 kos/ov pri dobavitelju
  • Znamka: SEEED STUDIO
  • Id številka: 2166/29
15,93 €

What is ReSpeaker?

ReSpeaker is an open modular voice interface to hack things around you. Let you interact with your home appliances, your plant, your office, your internet-equipped devices, or any other things in your daily life, all by your voice. The ReSpeaker project provides hardware components and software libraries to build voice-enabled device.

Description

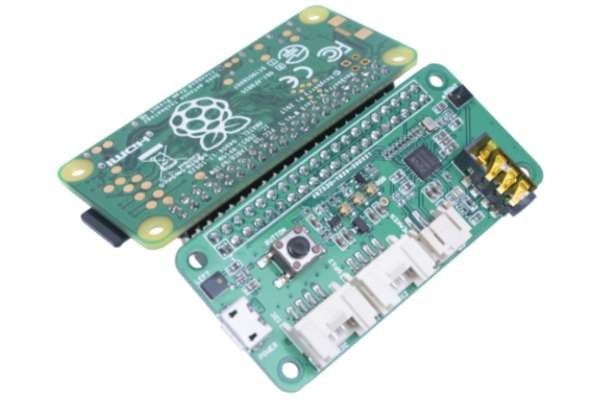

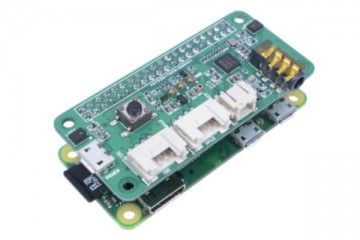

ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

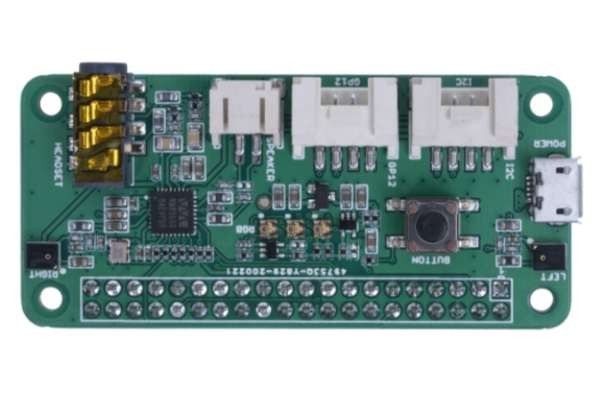

The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and it also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications.

Features

  • Raspberry Pi compatible(Support Raspberry Pi Zero, Raspberry Pi 1B+, Raspberry Pi 2B, Raspberry Pi 3B, Raspberry Pi 3B+ and Raspberry Pi 4)
  • Dual-Microphones
  • 2 Grove Interfaces: support GPIO and I2C
  • Programmable Button and LED: one button and three LEDs
  • Stereo Codec with Class D Speaker Driver
  • Two types audio output socket : 3.5mm Audio Jack(40mW output ), JST2.0 Speaker Out(providing 1W into 8Ω loads)
  • Far-field support (up to 3 meters)

Technical details

  • Dimensions:65mm x30mm x15mm
  • Weight:G.W 33g
  • Battery:Exclude

Documentations

Respeaker_2_Mics_Pi_HAT_SCH

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
