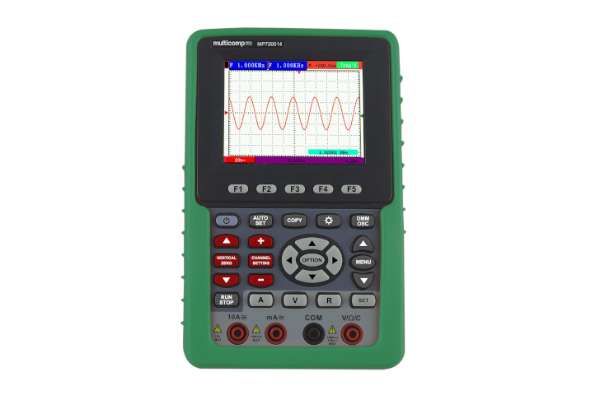

OSCILLOSCOPE, DMM, HANDHELD DSO, 1 ANALOGUE, 20 MHZ, 500 MSPS, 24 KPTS, 17.5 NS, MULTICOMP PRO MP720014 EU-UK

352,75 €

Description

The Multicomp Pro MP720014 is a 2-in-1, 20MHz, 8-bit handheld digital storage oscilloscope with digital multimeter. Featuring auto-scale functionality, 20 automatic measurements, USB data transmission support, waveform record and replay, newly supported SCPI and a rechargeable Li-ion battery.

  • Auto-scale status
  • 3.7" colour TFT display (640x480)
  • Trigger sensitivity adjustable
  • 24k points record length
  • 8 bit vertical resolution (A/D)
  • 5mV/div~5V/div vertical resolution (at input)
  • Edge and video trigger types
  • Auto, normal and single trigger modes
  • Trigger level - ±6 divisions from screen centre
  • Sample, peak detect and average acquisition modes
  • 4 waveform storage
  • Mini-USB and Mini-RS232 communication interfaces
  • Dimensions - 115 x 180 x 40mm
  • Device weight - 645g

Content

Handheld Digital Storage Oscilloscope, 2x probes, Power adaptor, USB mass storage connection cable, USB communication cable, Extension module for capacitance measurements, Output terminal for 1KHz 5V square-wave test signals, CD-ROM, Operating instructions, UK & EU power cords.

Datasheet: MP720014 EU-UK

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
