DIGITAL OSCILLOSCOPE, ECONOMICAL, ECO, 2 ANALOGUE, 20 MHZ, 100 MSPS, 10 KPTS, 17.5 NS, MULTICOMP PRO MP720009 EU-UK

  • Zaloga DA, 55 kos/ov pri dobavitelju
  • Dobava 3-5 dni
  • Znamka: MULTICOMP PRO
  • Id številka: 2280/
313,37 €

Description

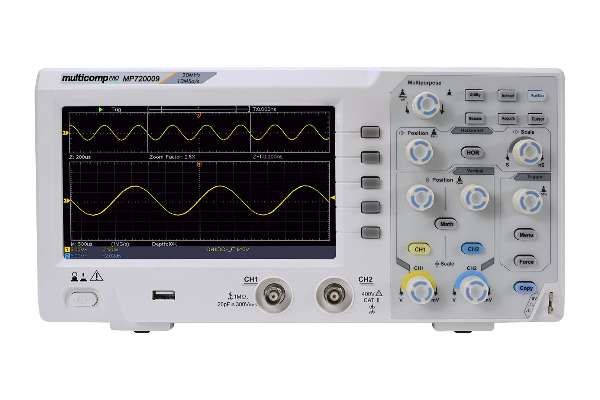

The Multicomp Pro MP720009 is a 2-channel, 20MHz, economical type digital oscilloscope. This oscilloscope features a 7" high resolution LCD colour display, front-sided USB CI design and ultra-thin device body.

  • Large 7" high resolution LCD display (800x480)
  • Friendly UI interaction - easy-accessible operation menu ensures users retrieve results conveniently
  • Windows extension facilitates the observation of abnormal signal from full waveforms
  • 30 auto-measurement options
  • DC, AC and GND input couplings
  • 8 bit vertical resolution (A/D) (2 channels simultaneously)
  • 5mV/div - 5V/div vertical sensitivity (at input)
  • Edge & video trigger types
  • Auto, normal and single trigger modes
  • Dimensions - 301x152x70mm
  • Device weight - 1.1kg

Content

Digital Storage Oscilloscope, 2x 60MHz Probes, Probe Manual, Accessories Bag, Operating Instructions, CD-ROM, UK & EU Power Cords

Datasheet: MP720009 EU-UK



Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
