LITHIUM ION BATTERY PACK - 3.7V 6600MAH, ADAFRUIT 353

  • Zaloga NE
  • Znamka: ADAFRUIT
  • Id številka: 3155/60
38,49 €

Description

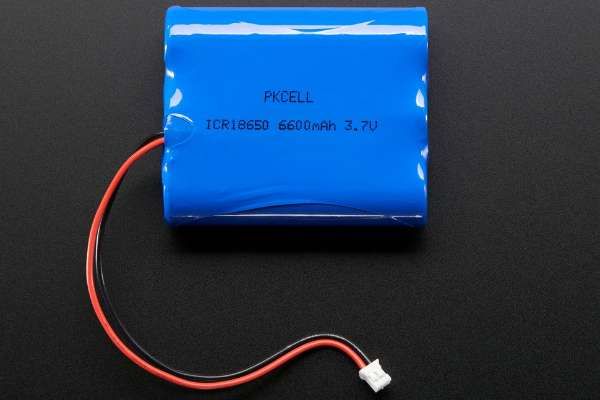

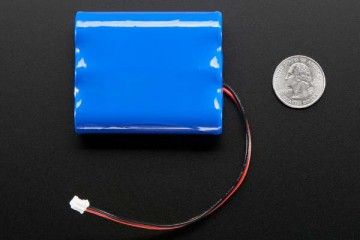

Need a massive battery for your project? This lithium-ion pack is made of 3 balanced 2200mAh cells for a total of 6600mA capacity! The cells are connected in parallel and spot-welded to a protection circuit that provides over-voltage, under-voltage, and over-current protection. Each cell can provide 0.5C of current (1.1 A per) so all together the peak current you can draw is over 3.3 Amps. Note that these batteries are not designed to sustain such high loads, we suggest keeping any constant current draw under 0.2C or 1.3A. The batteries come pre-attached with a 2-pin JST-PH connector as shown and include the necessary protection circuitry. Because they have a high quality JST-or-compatible connector, the cable won't snag or get stuck in a matching JST jack, they click in and out smoothly. The cables are rated for 2A so if you use them keep that in mind.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut out when completely dead at about 3.0V. However, even with this protection, it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 0.25C (1.5A) or less. Like most lithium-ion packs, the batteries we sell do not have thermistors built-in. This is why we suggest charging at 0.2C or even less - 1A max in this case. Of course, you can charge at a lower rate - it'll just take a little longer to fill up.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush, or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits. Polarity matches all Adafruit LiPoly/LiIon chargers and boards, other brands may have reverse polarity and can destroy your battery. As with all Lithium-ion polymer batteries and with any power source - they should be used by experts who are comfortable working with power supplies.

Specifications

  • 3 x 2200mAh Lithium Ion 18650-sized cells in parallel
  • Dimensions: 69mm x 54mm x 18mm / 2.7" x 2.1" x 0.71"
  • Weight: 155g / 5oz
  • Max charging rate: 1.65A
  • Max continuous discharge rate: 3.3A

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
