AWS IOT EDUKIT SIMPLEIOT STARTER BUNDLE V1.0, M5STACK K010-SI

Description

SimpleIOT is an easy-to-use, serverless IOT framework built on top of scalable AWS services. It is 100% open-source with all data, code, and services residing in the user’s own account. It allows connected-device makers, from hobbyists, to startups and enterprises, to have a functional system up and running in minutes. This allows them to focus on their application’s features instead of on undifferentiated heavy lifting. By standardizing on SimpleIOT, enterprises can develop consistent tooling, analytics, and workflows across all their products and services.

Product Features

• Modern, serverless architecture (scalable, pay-as-you-go)
• Simple installation process
• Command-line-interface for development and simulation
• RESTFul APIs
• End-to-end encryption, both in transit and at-rest
• Support for GPS/location data
• Simple, embeddable Arduino-core SDK
• Documentation, examples, and workshops
• Integration with all AWS services (data analytics, visualization, AI/ML)
• 100% open-source

Built on AWS

• Install in your own AWS account
• Integrate with:
• Amazon Sagemaker
• AWS Lake Formation
• Amazon Managed Grafana
• Amazon Location

Uses

• Medical Devices
• Industrial Automation
• Smart Homes
• Transportation and Logistics
• Consumer Goods

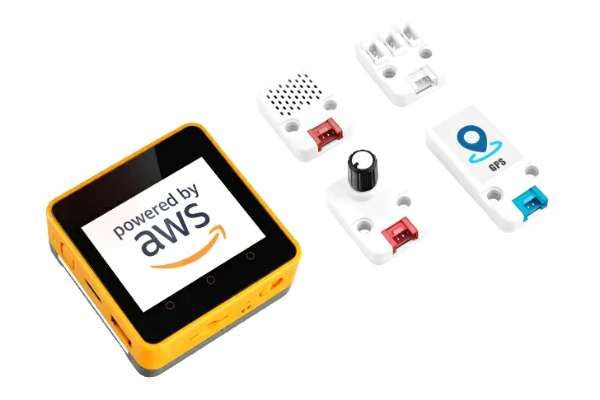

Include

• 1x AWS IoT EduKit
• 1x ENV III Environmental Sensor
• 1x Rotary Encoder
• 1x Mini-GPS
• 1x 1 to 3 HUB Expansion Unit

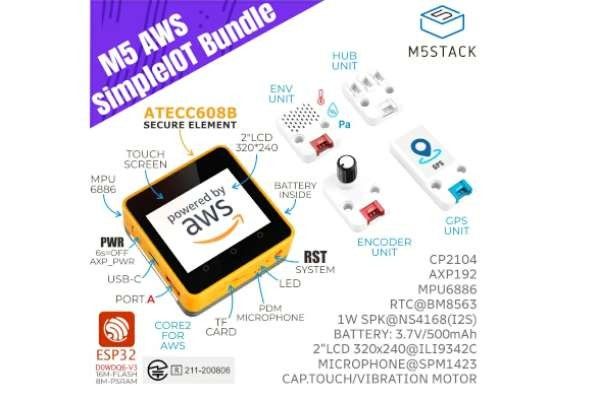

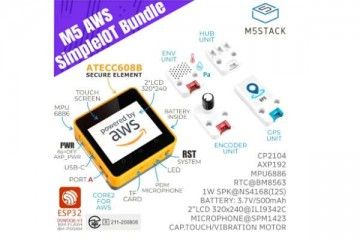

Specification of AWS IoT EduKit

• ESP32-D0WDQ6-V3:240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
• Flash:16MB
• PSRAM:8MB

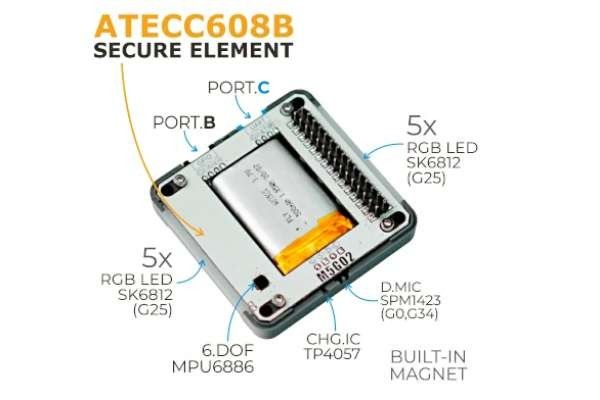

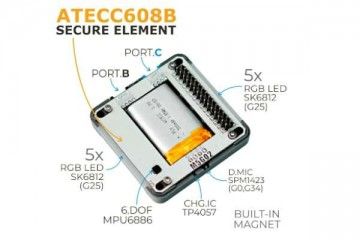

• Hardware encryption chip:ATECC608B-TNGTLSU-G (addr 0x35)
• Input voltage:5V @ 500mA
• Host interface:TypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1
• Programmable LED light:SK6812*10
• Button:Power button, RST button, virtual screen button * 3
• Vibration reminder:Vibration motor
• IPS LCD screen:2.0"@320*240 ILI9342C
• Capacitive touch screen IC:FT6336U
• Speaker:1W-0928
• Microphone:SPM1423
• I2S power amplifier:NS4168
• IMU:MPU6886
• RTC:BM8563
• PMU:AXP192
• USB chip:CP2104
• DC-DC boost:SY7088
• TF card slot:Support up to 16G
• Lithium battery:500mAh @ 3.7V
• Antenna:2.4G 3D antenna
• Working temperature:32°F to 104°F (0°C to 40°C )

Learn and Document:

• Command Line Interface (CLI)
• Arduino Client SDK
• Data
