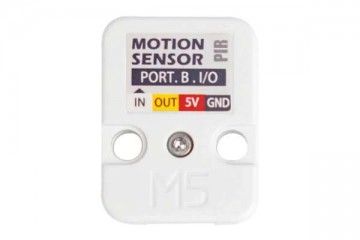

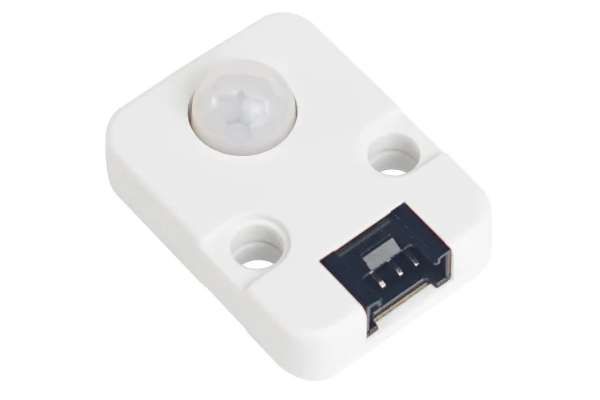

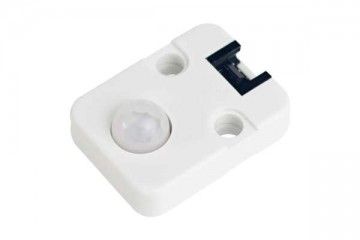

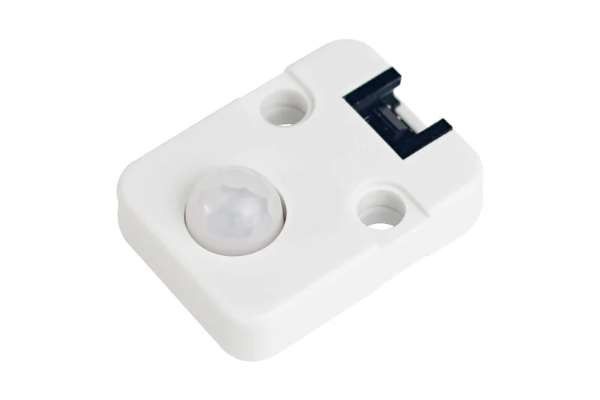

PIR MOTION SENSOR (AS312), M5STACK U004

  • Zaloga DA, 210 kos/ov pri dobavitelju
  • Znamka: M5STACK
  • Id številka: 3216/
7,49 €

Description

PIR is a human body infrared unit. It belongs to the "passive pyroelectric infrared detector". It detects the infrared radiation emitted and reflected by the human body or object. When infrared is detected, the output level is high and it takes a while. Delay (high during the period and allow repeated triggers) until the trigger signal disappears (restores low).

This Unit communicates with the M5Core via the GROVE B.

Notice: This Unit has 2s delay time.

Product Features:

  • Detects the distance: 500cm
  • Latency time: 2s
  • Sensing range: < 100°
  • Quiescent current: < 60uA
  • Operating temperature: -20 - 80 °C
  • GROVE interface, support UIFlow and Arduino
  • Two Lego installation holes

Includes:

  • 1x PIR unit
  • 1x GROVE Cable

Applications

  • Human body Induction Lamp
  • Security Product
  • Automatic Induction Appliance Settings

Specification

  • Net weight:5g
  • Gross weight:20g

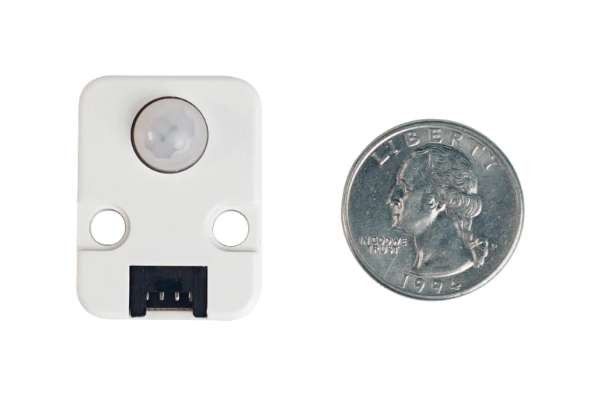

  • Product Size:32*24*12mm
  • Package Size:60*57*17mm

Learn and Document: M5STACK

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
