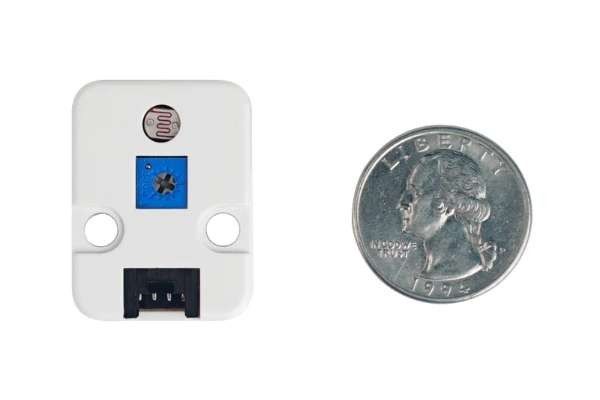

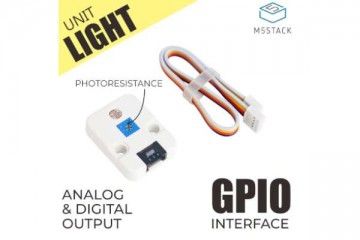

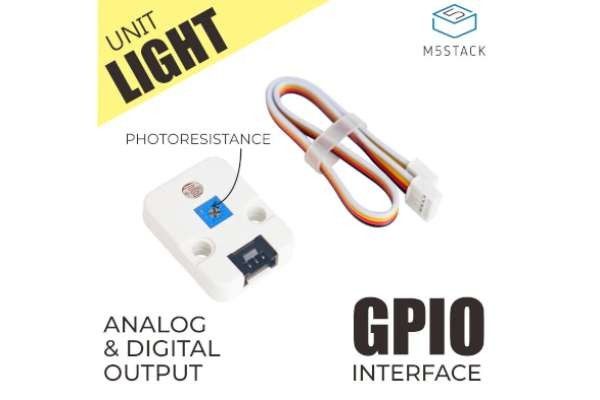

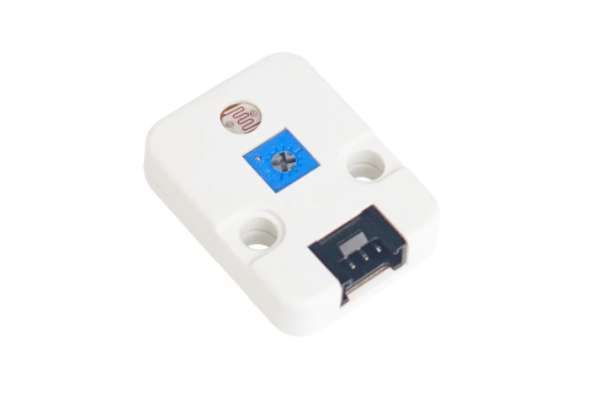

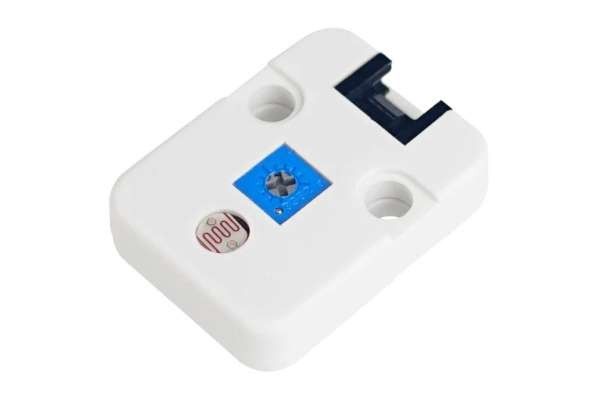

LIGHT SENSOR UNIT WITH PHOTO-RESISTANCE, M5STACK U021

Description

LIGHT is a light intensity sensor unit with an adjustable photo-resistor. A photo-resistor is a light-controlled variable resistor. The resistance of a photo-resistor decreases with increasing incident light intensity and vice versa. The sensor exhibits photoconductivity which make it possible to detect the light varies based on voltage and use an AD (Analog to digital converter) to convert the digital data. We added some extra work to strengthen the circuit, a Dual Differential Comparators LM393, compares the differential voltage between the photo-resistor and the varistor. It could offer larger and accuracy range of light intensity.

Product Features:

• 10K adjustable resistor
• Software Development Platform: Arduino, UIFlow(Blocky,Python)
• Two Lego-compatible holes

Includes:

• 1x LIGHT Unit
• 1x Grove Cable

Specifications:

• Adjustable resistance:10K
• Net weight:4g
• Gross weight:17g
• Product Size:32*24*8*mm
• Package Size:67*53*12mm

Learn and Document: M5STACK
