4-RELAY UNIT, M5STACK U097

Description

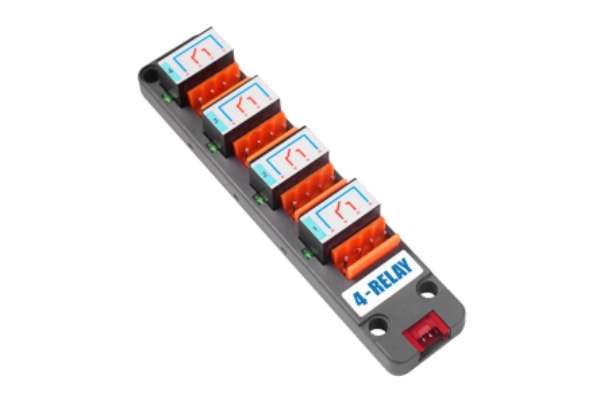

4-Relay unit is an integrated 4-way relay module which can be controlled by I2C protocol. The maximum control voltage of each relay is AC-250V/DC-28V, the rated current is 10A and the instantaneous current can hold up to 16A. Each relay can be controlled independently, each on it's own. Each relay has status (LED) indictor as well to show the state of the relay at any given time.

Product Features:

• 4-way relay
• AC-250V/DC-28V/10A
• LED status indication
• I2C communication (0x26)

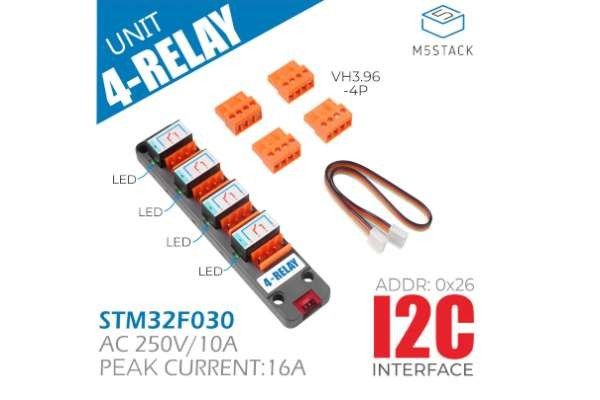

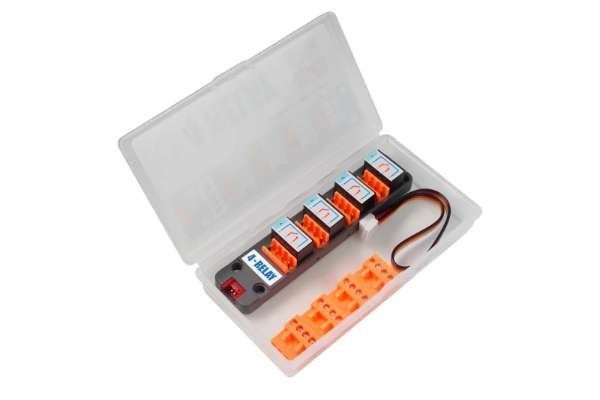

Includes:

• 1x 4-Relay Unit
• 1x Grove Cable(20cm)
• 4x VH-3.96-4P Plug terminal

Applications:

• Digital signal switching
• Programmable power switch

Specifications:

• Maximum input voltage:AC-250V/DC-28V
• Rated current:10A
• Maximum instantaneous current:16A
• Communication:I2C(0x26)
• Net Weight:40g
• Gross Weight:84g

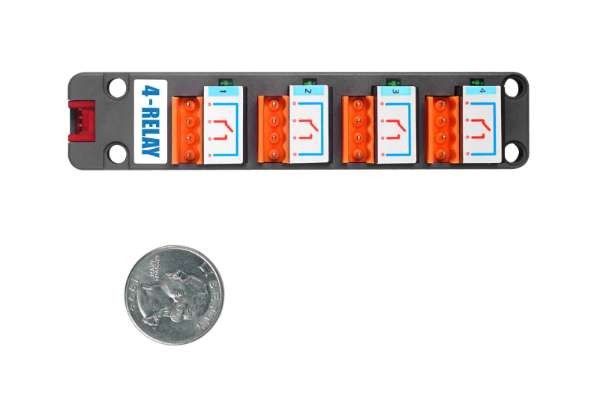

• Product Size:112*23*18mm
• Package Size:125*65*22mm

Learn and Document: M5STACK
