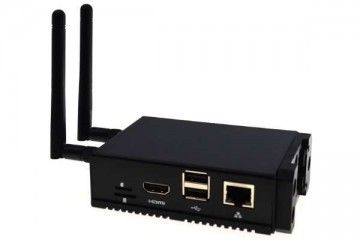

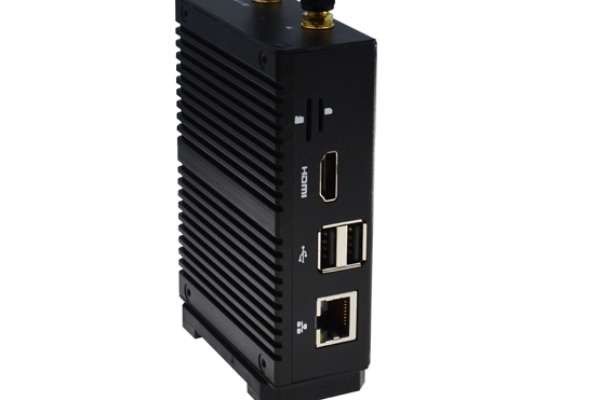

CM4 SENSING BASEBOARD, CM4102008, WITH WIFI & BT, WIFI ANTENNA, 2GB DDR, 8GB EMMC FLASH, WITH 4G/LTE MODULE (EU), METAL BLACK CASE, EDATEC ED-CM4SEN-1208-4C(EU)

  • Zaloga DA, 1 kos/ov
  • Znamka: EDATEC
  • Id številka: 3232/
221,13 €

Introduction

ED-CM4SEN is an industrial computer designed for IoT & Data Acquisition applications based on Raspberry Pi Compute Module 4 (CM4 for short). It makes full use of the structural flexibility of CM4 to solve the heat dissipation problem of CPU, wireless module and PMU. The external antenna improves the reliability of wireless communication.

The system can be configured into 1GB/2GB/4GB/8GB RAM and 8GB/16GB/32GB eMMC, 2.4/5.8G dual-band WiFi and Bluetooth (optional) according to different applications, and it supports external antenna.

For application scenarios that require large data storage capacity, user can use eMMC to install the operating system and store the application data, at the same time, user can use SD card to store large user data, compare to the built-in eMMC memory, SD card can offer larger capacity and its cost is more effective.

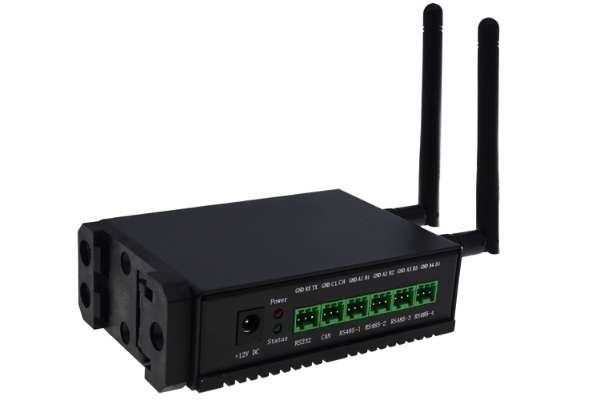

ED-CM4SEN provides 4G/LTE module, 4 channels RS485,1 channel RS232, 1 channel CAN, 1 channel Gigabit Ethernet port, alarm buzzer, battery-powered real-time clock.

The DSI interface of ED-CM4SEN are fully compatible with Raspberry Pi4 Model B, supports Raspberry Pi official 7" touch display. A 5V/1.5A power output provides the power for Pi Display, the Standard HDMI interface can output 4K HD video.

ED-CM4SEN provides 2 channels USB2.0 and 1 channel Micro USB2.0 interfaces, and Micro USB interface is used to update the system image.

The system supports +12V~18VDC power input, the dimension of ED-CM4SEN is 103*73*32mm, which is slightly larger than Pi4 Model B. The connectors come out from front and back end, a 103*73mm*5mm heat sink provides excellent cooling performance for CPU, wireless module and PMU, the whole system can work reliably in a high temperature environment. Based on our real testing in the lab, ED-CM4SEN can work reliably at ambient temperature of -25~70°C.

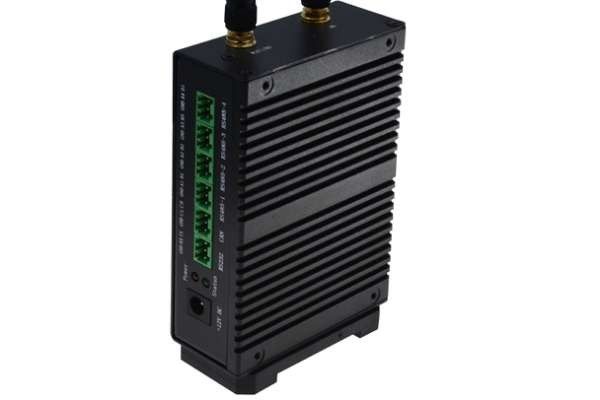

Four M2.5 screw holes are reserved at the case bottom of the ED-CM4SEN, which is convenient for users to install the ED-CM4SEN on other equipment, it also supports DIN rail mounting.

Features (in this product/specification):

Broadcom BCM2711

  • Quad-core, Cortex-A72, 1.5GHz ARM v8 64-bit CPU
  • Support H.264, H.265 decoding, Support 4Kp60 video play
  • Support H.264 encoding
  • Support OpenGL EL 3.0

DDR

  • LPDDR4, up to 3200MT/s
  • 1GB | 2GB - Included in this specification| 4GB | 8GB
  • Dual Storage
  • 8GB Included in this specification | 16GB | 32GB eMMC
  • micro-SD Card for Data storage - SD card not included - Choose sd card here.

Dual Storage

  • eMMC for rootfs
  • 1x microSD Slot (for data storage)

Display

  • 1x HDMI Type A
  • 1x DSI, Support Raspberry Pi official 7" Touch Display
  • 1x HDMI FPC

Wired Interfaces

  • 1x 10/100M/1000Mbps Ethernet
  • 2x USB2.0 Type A
  • 1x Micro USB2.0(for eMMC Flashing and some USB Device Applications)

Wireless

  • 1x 4G/LTE module (optional) - Included in this specification
  • 1x 2.4G/5.8G WiFi, IEEE 802.11 b/g/n/ac
  • 1x Bluetooth 5.0, Support BLE
  • Optional certified WiFi/BT External antenna with Raspberry Pi CM4

Industrial Interfaces

  • 4x RS485
  • 1x CAN
  • 1x RS232
  • 1x RTC with battery
  • 1x LED for Power Indicator
  • 1x LED for System status Indicator
  • 1x Buzzer

Expansion Interfaces

  • Mini PCIe slot with 1-lane PCIe Gen2 and 1x USB 2.0 Host

Power IN

Operating Temperature

  • -25 ~ 70°C

Dimension

  • 103 mm(L) x 73 mm(W) x 32mm(H)

Software / Raspberry Pi Ecosystem

  • Compatible with Origin Raspberry Pi OS, support 32-bit and 64-bit OS
  • Support install and update BSP with apt-get
  • Support Kernel and OS Upgrade
  • Pre-installed Os in eMMC, ready-to-use

*If you want different specification write to info@galago.si.

Interface Diagram

Top

Bottom



Links:

Product Page with Downloads and Quick Start Guide
