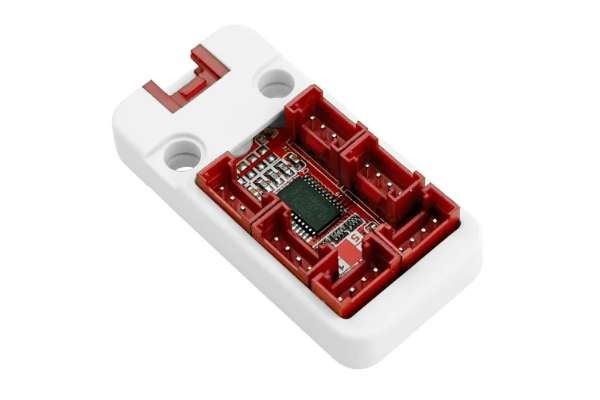

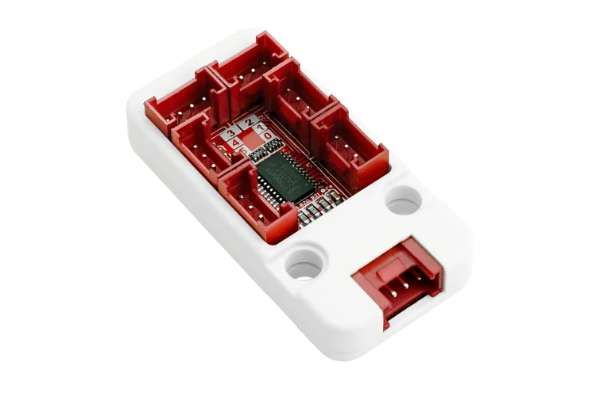

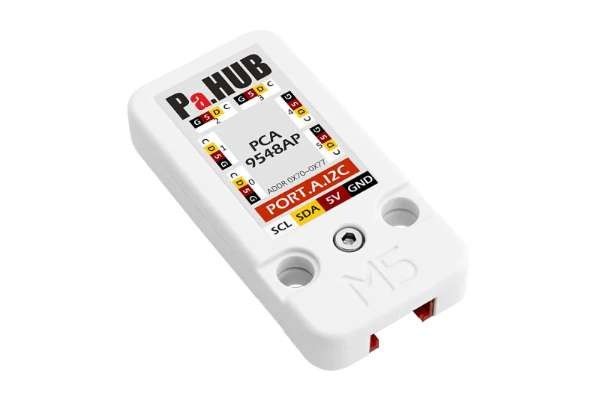

I2C HUB 1 TO 6 EXPANSION UNIT (PCA9548APW), M5STACK U040-B

Description

PaHUB2, is an I2C Expandable Hub, which can expand a single I2C HY2.0-4P interface and connects up to 6 I2C channels. It allows you to mount slave devices with the same I2C address (by polling control the different channels to achieve in-device coexistence). Embedded PCA9548AP-I2C multi-channel switch IC, Save you worries with insufficient I2C interface of the expansion.

Product Features:

• I2C HY2.0-4P PORTA expansion
• 2x LEGO compatible holes
• Support multiple nesting

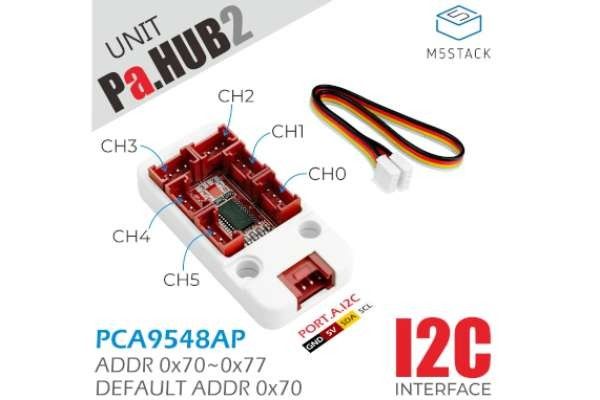

• 1-6 expansion

Includes:

• 1x Pahub2 Unit
• 1x HY2.0-4P Cable

Applications:

• I2C device expansion

Specifications:

• Channel Control IC:PCA9548AP
• Communication protocol:I2C: 0x70 (can be modified by resistance A0, A1, A2)
• Net weight:7g
• Gross weight:19g
• Product size:48 * 24 * 12mm
• Packing size:67 * 53 * 12mm

Learn and Document: M5STACK
