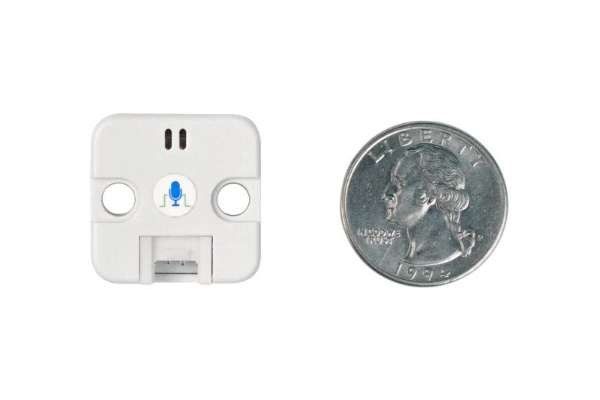

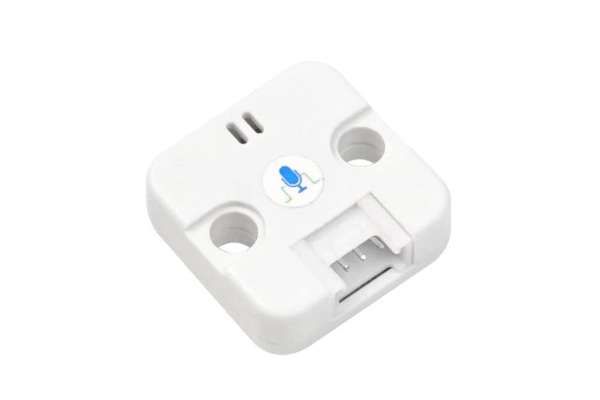

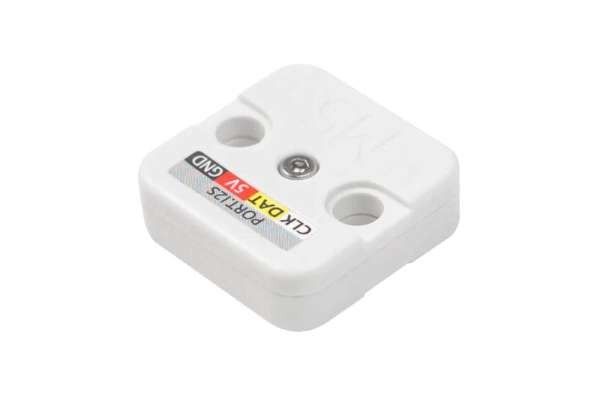

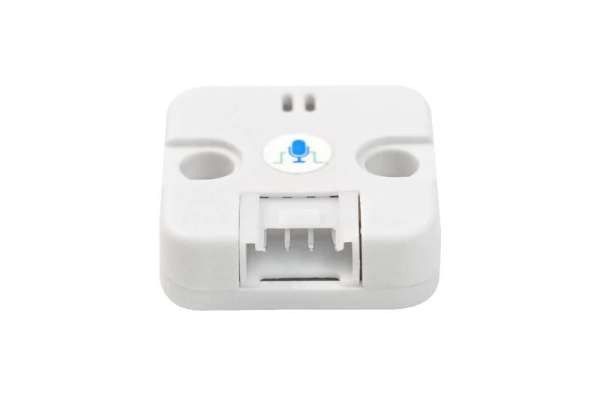

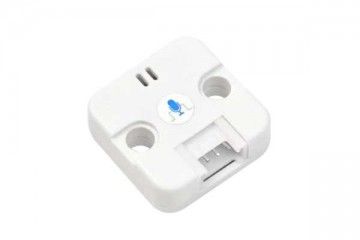

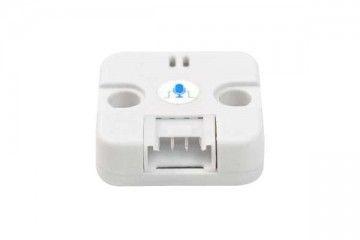

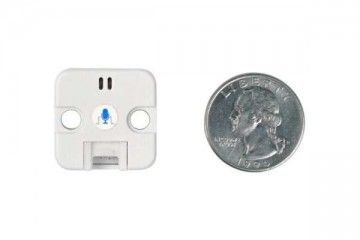

PDM MEMS MICROPHONE UNIT (SPM1423), M5STACK U089

  • Zaloga DA, 34 kos/ov pri dobavitelju
  • Znamka: M5STACK
  • Id številka: 3281/
4,77 €

Description

PDM mini Unit is a digital MEMS silicon-based microphone based on PDM (Pulse Density Modulation) signal. The microphone has high signal-to-noise ratio, high sensitivity, low power consumption, anti-radio frequency interference, smooth frequency response and other characteristics. It automatically switches the microphone state according to the clock frequency (power down/activate/sleep)and can be widely used for audio data collection on wearable devices and smart digital devices.

Product Features:

  • I2S PORT,PDM encoding output (CLK/DAT)
  • High sensitivity, high signal to noise ratio
  • Low power consumption
  • Anti-radio frequency interference
  • Compatible with LEGO

Includes:

  • 1x PDM mini Unit
  • 1x HY2.0 4P Cable(5CM)

Applications:

  • Spectrum Analyzer
  • Recorder
  • Noise meter

Specifications:

  • Digital microphone:SPM1423
  • Sensitivity:94dB SPL@1KHz Nom.:-22dBFS
  • Signal to Noise Ratio:94dB SPL@1KHz,A-weighted Nom.:61.4dB
  • Total Harmonic Distortion:100dB SPL@1KHz Nom.:1%
  • Working Current:600µA
  • Net Weight:4g
  • Gross Weight:8g
  • Product Size:24*24*13mm
  • Package Size:35*36*18mm
  • Case material:Plastic(PC)

Learn and Document: M5STACK
