DLIGHT UNIT - AMBIENT LIGHT SENSOR (BH1750FVI-TR), M5STACK U136

  • Zaloga DA, 52 kos/ov pri dobavitelju
  • Znamka: M5STACK
  • Id številka: 3293/
7,49 €

Description

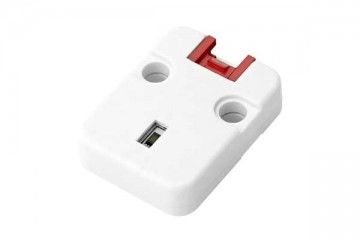

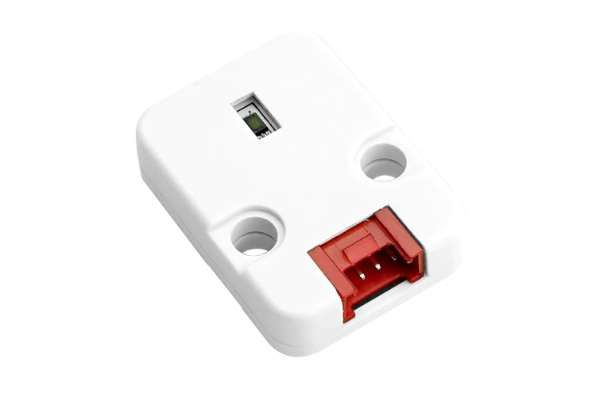

DLight Unit is a Digital Ambient Light Sensor. Adopts BH1750FVI sensor (I2C interface), integrates 16-bit ADC, supports wide-range LUX and high resolution (1 - 65535 LX). Compact in size, and low power consumption. Suitable for various light sensing applications.

Product Features:

  • Support I2C interface (addr: 0x23)
  • Illumination digital conversion
  • Support light source variations (incandescent, fluorescent, halogen, white LED, sunlight, etc)
  • Wide Range LUX (1-65535 lx)

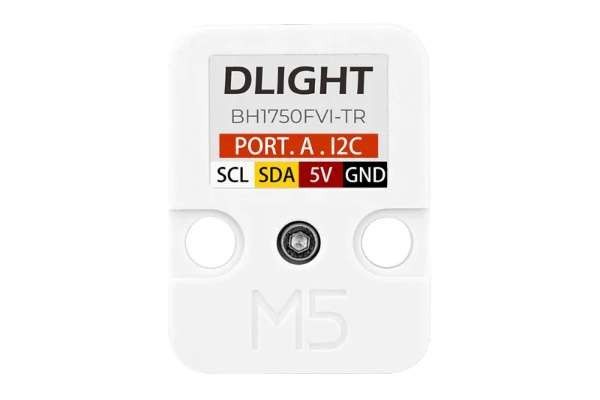

  • HY2.0-4P interface

Includes:

  • 1x DLight Unit

Applications:

  • Smart Factory
  • Home Automation
  • Ambient light Sensing Scenario

Specifications:

  • Sensor Model:BH1750FVI
  • Illumination detection range:1-65535 lx
  • Communication interface:I2C communication interface (addr: 0x23)
  • Typical peak sensitivity wavelength:560nm
  • Working current:< 5V@143uA
  • AD conversion depth:16bit
  • Net weight:4.8g
  • Gross weight:10g

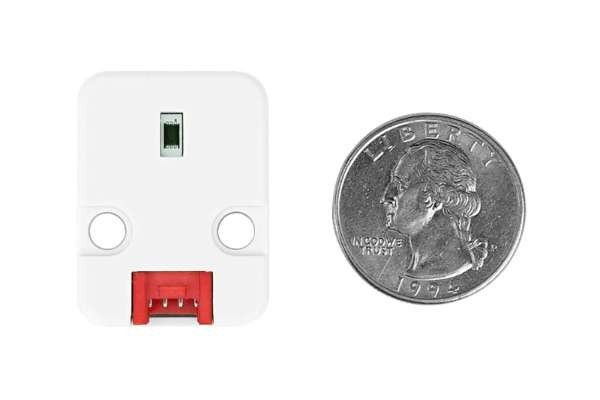

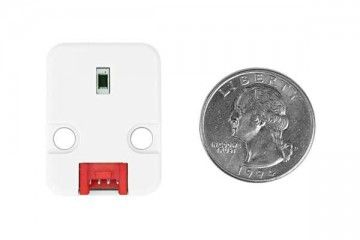

  • Product Size:32 * 24 * 8mm
  • Package Size:93 * 138mm

Learn and Document: M5STACK
