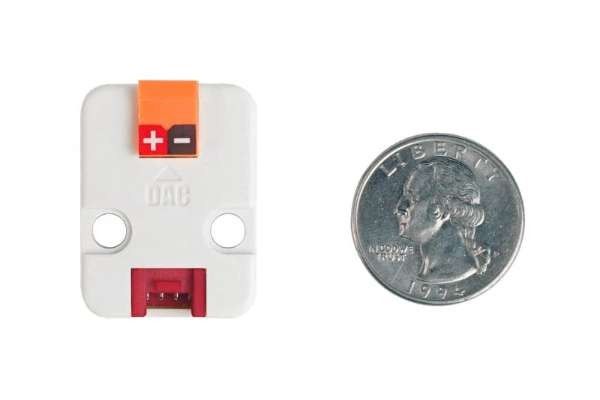

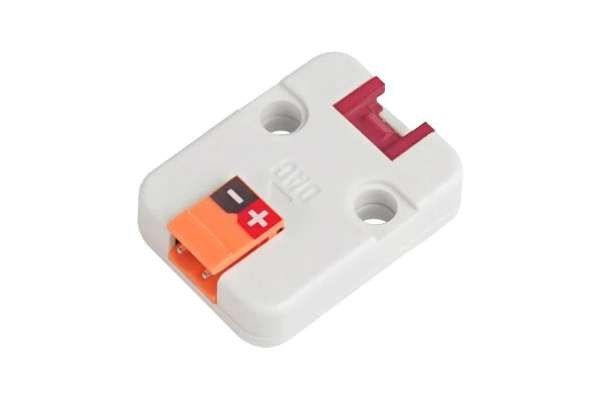

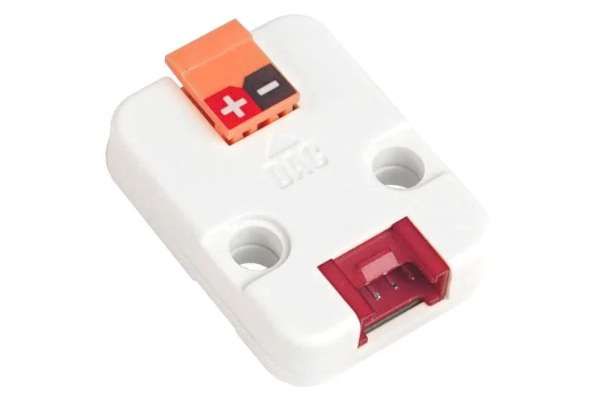

DAC CONVERTER DIGITAL TO ANALOG I2C UNIT (MCP4725), M5STACK U012

Description

DAC, is a unit with the ability to convert digital signal to analog signal (voltage waveform signal) with support for audio waveform and more. It integrates a 12-bit high resolution DAC chip named MCP4725 which has an on-board non-volatile memory (EEPROM). The unit communicates with the M5Core using the I2C protocol.

The DAC input and configuration data can be programmed to the EEPROM in order for the data to be saved after reboot or system shutdown.

The device I2C address is 0x60 by default unless changed manually.

Product Features

• Up to 12 bits of resolution
• Output 0~3.3V voltage GROVE interface, support UIFlow and Arduino
• Two Lego-compatible holes

Includes:

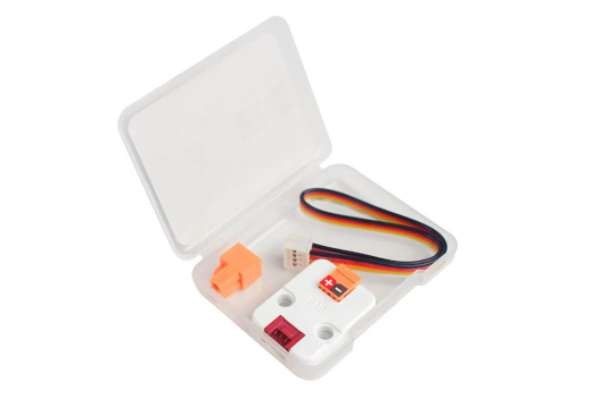

• 1x DAC Unit
• 1x Grove Cable

Applications:

• MP3 Audio Player
• mini Oscilloscope

Specification

• Resolution:12 bit
• Voltage range:0-3.3V
• Communication protocol:I2C: 0x60
• Net weight:4g
• Gross weight:19g
• Product Size:32.2*24.2*10.3mm
• Package Size:67*53*12mm

Learn and Document: M5STACK
