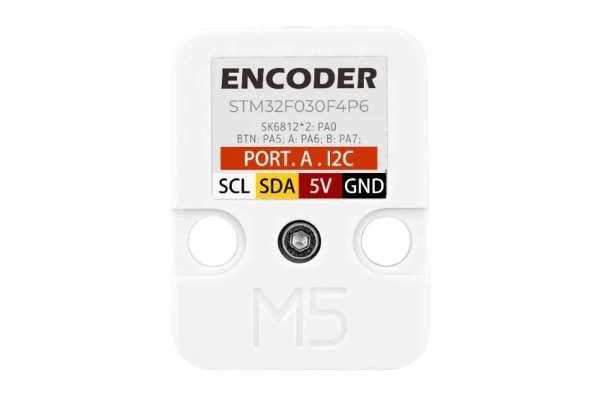

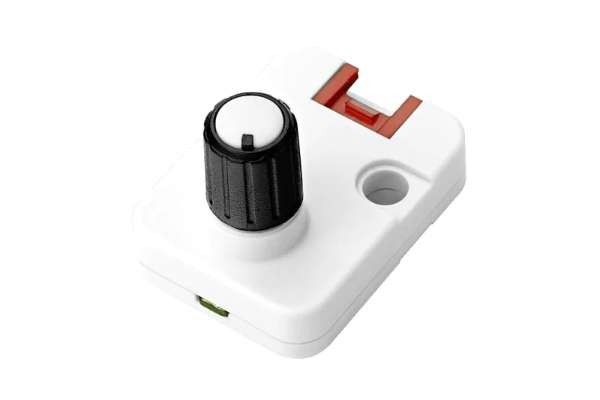

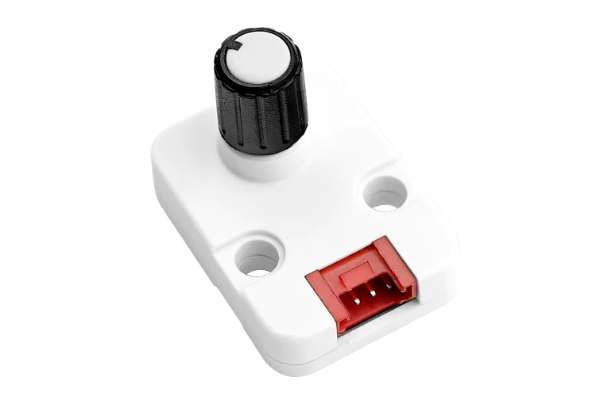

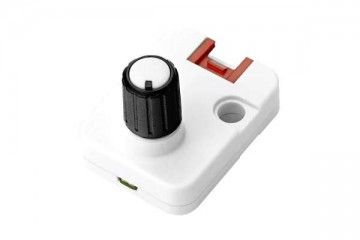

ENCODER UNIT, M5STACK U135

  • Zaloga DA, 29 kos/ov pri dobavitelju
  • Znamka: M5STACK
  • Id številka: 3319/
10,82 €

Description

Unit Encoder is a rotary encoder expansion unit with I2C interface, integrated with 30-bit pulse encoding knob (with button function) + 2 x SK6812 programmable RGB LEDs. The built-in STM32F030 flashed with the encoder pulse acquisition firmware, allowing users to obtain the encoded value directly via I2C. Suitable for scale value control/volume adjustment and other control scenarios.

Product Features

  • 30-bit pulse encoding knob (30 pulses per rotation)
  • 2x SK6812 programmable RGB LEDs
  • 1x Button input

Includes:

  • 1x Unit Encoder
  • 1x HY2.0-4P cable (20cm)

Applications:

  • Human Machine Interaction (HMI)
  • Volume knob

Specifications:

  • Pulse encoder knob:30-bit pulse encoder knob (with key input)
  • Programmable RGB LED:2x SK6812
  • Working current:Encoder working (DC-5V@17mA)
  • Net weight:7.4g
  • Gross weight:12.3g

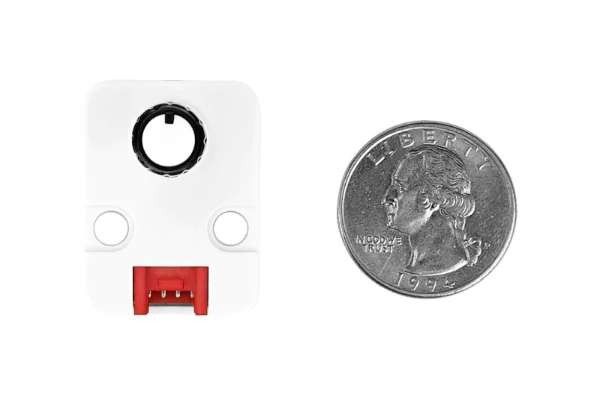

  • Product size:32 * 24 * 22mm
  • Packing size:93 * 138mm

Learn and Document: M5STACK

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
