1.9INCH LCD DISPLAY MODULE, 170×320 RESOLUTION, WAVESHARE 23822

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3327/
16,91 €

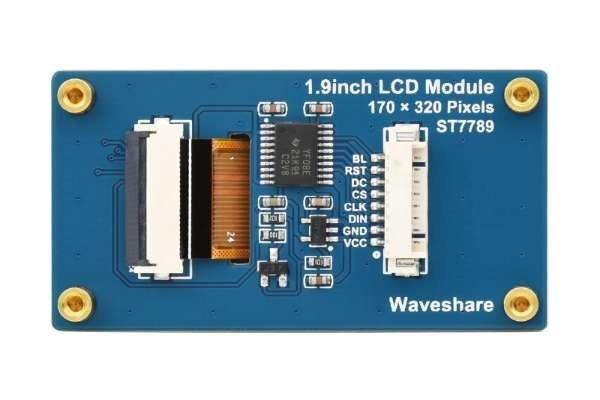

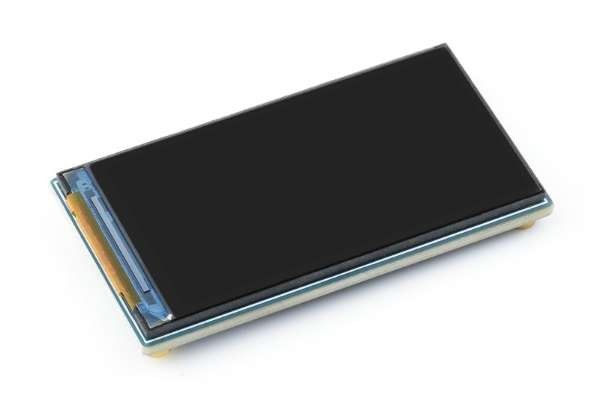

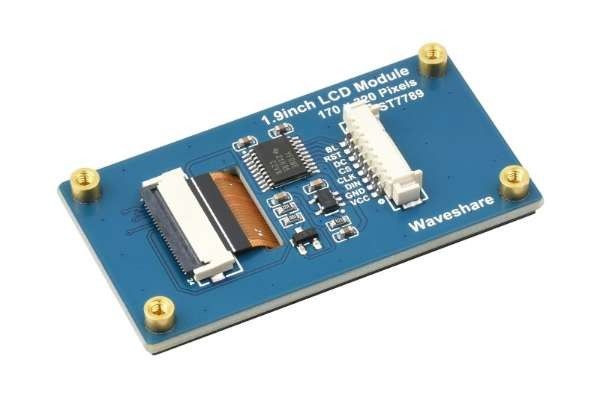

1.9inch LCD Display Module

Embedded ST7789V2 Driver Chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



    • Size1.9"
      •
    • Resolution170×320
      •
    • Display Color262K

  • InterfaceSPI
    •
  • Display PanelIPS
    •
  • DriverST7789V2
Features At A Glance
  • 170×320 resolution, 262K colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V / 5V RESOLUTION 170 × 320 pixels
COMMUNICATION INTERFACE 4-wire SPI DISPLAY SIZE 22.70 × 42.72 mm
DISPLAY PANEL IPS PIXEL SIZE 0.1335 × 0.1335 mm
DRIVER ST7789V2 MODULE SIZE 27.3 × 51.2mm



Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input



Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

BL Backlight
RST Reset, low active
DC Data/Command selection (high for data, low for command)
CS Chip selection, low active
CLK SPI clock input
DIN SPI data input
GND Ground
VCC Power (3.3V / 5V input)



Hardware Connection


Connecting With Raspberry Pi



Connecting With Arduino Board



Connecting With STM32



Usage Example



Product Show




Outline Dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
