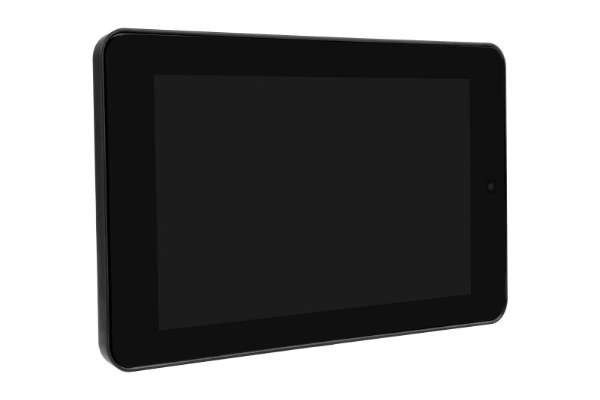

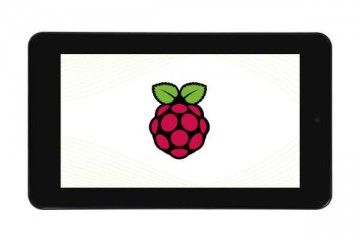

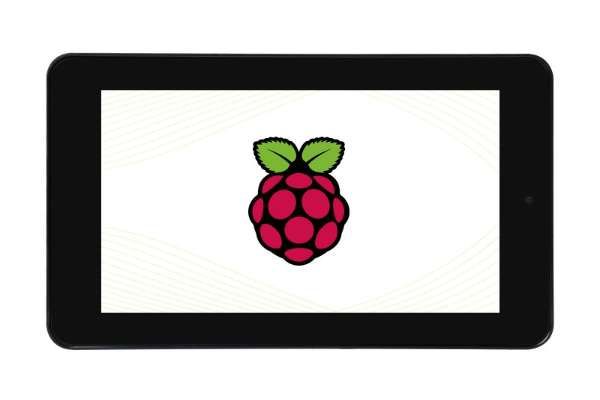

7INCH CAPACITIVE TOUCH DISPLAY FOR RASPBERRY PI, WITH PROTECTION CASE AND 5MP FRONT CAMERA, 800×480, DSI, WAVESHARE 21366

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3367/
113,18 €

7″ Touch Display With 5MP Front Camera
  • Size7″
    •
  • Resolution800×480
    •
  • Front Camera5MP
    •
  • Display PortDSI
    •
  • Power ConsumptionLow Power
    •
  • Touch TypeCapacitive
    •
  • Touch Points5-Points
    •
  • Touch PortI2C
    •
  • Touch PanelToughened Glass
    •
  • EnclosureABS
Device & System Support




Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu, single point touch, driver free

Supports Pi 4B

Connection Examples

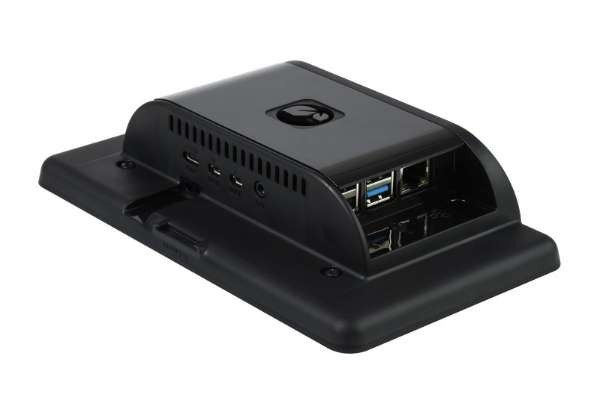

Working With Raspberry Pi 4

5MP Front Camera
SENSOR OV5647 CMOS SIZE 1/4 inch
PIXELS 5MP APERTURE F2.4
FOCAL LENGTH 3.89mm DIAGONAL FOV 72.9°
DISTORTION < 1.5% DEPTH OF FIELD 20cm ~ ∞
IMAGE 2592 × 1944 still image resolution
VIDEO 1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90
Touch Control


1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software
Appearance And Dimensions

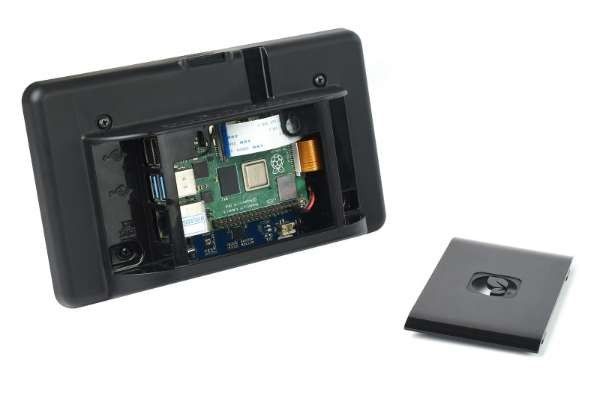

How To Install
for reference ONLY, the Raspberry Pi 4B is NOT included.


Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
