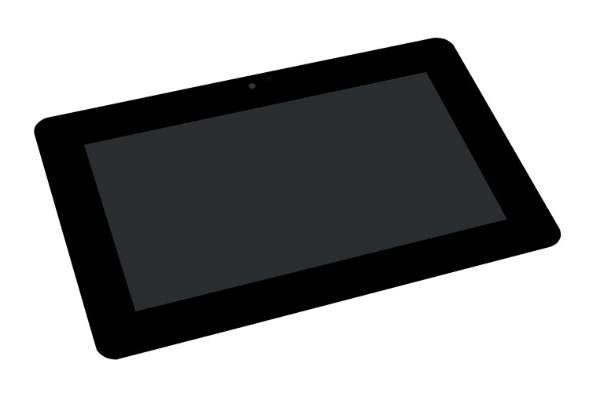

8INCH CAPACITIVE TOUCH DISPLAY FOR RASPBERRY PI, DSI INTERFACE, 800×480, WAVESHARE 21229

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3370/
81,22 €

8″ Touch Display
    • Size8″
      •
    • Resolution800×480
      •
    • Display PortDSI
      •
    • Power ConsumptionLow Power
  • Touch TypeCapacitive
    •
  • Touch Points5-Points
    •
  • Touch PortI2C
    •
  • Touch PanelToughened Glass
Device & System Support




Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board

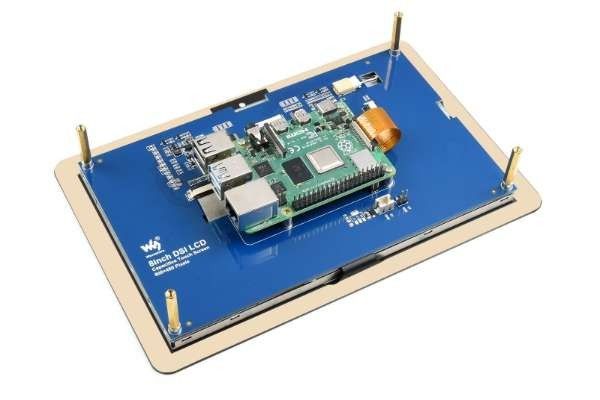

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Touch Control


1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software
Design Features
  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. Power supply via pogo pins, eliminating messy wiring
  4. Two types of 5V output headers, for connecting cooling fan or other low power devices
  5. Reversed camera hole on the touch panel, allows integrating external camera
  6. Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices
  7. Adopts SMD nuts for holding and fixing the board, more compact structure
Appearance And Dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
