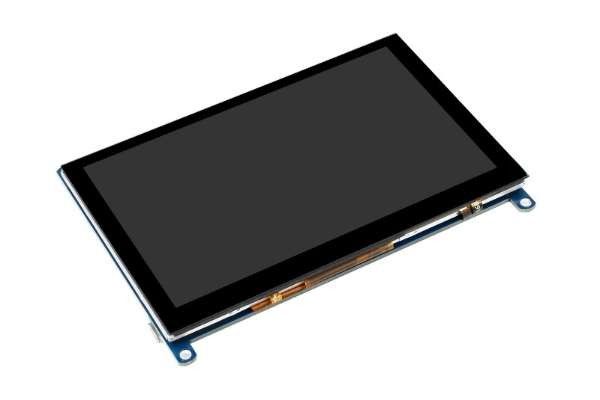

5INCH CAPACITIVE TOUCH SCREEN LCD (H) SLIMMED-DOWN VERSION, 800×480, HDMI, TOUGHENED GLASS PANEL, LOW POWER, WAVESHARE 20109
- Zaloga NE
- Dobava 7 dni
- Znamka: WAVESHARE
- Id številka: 3427/

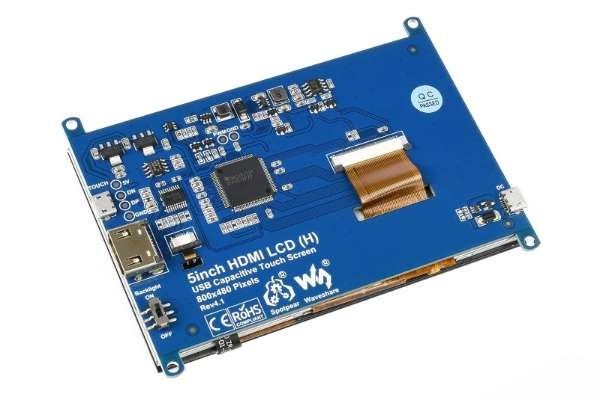

5" HDMI Touch Display V4
- Size
5" - Resolution
800×480 - Display Interface
HDMI - Touch Type
Capacitive - Touch Points
5-Points - Touch Port
USB - Touch Panel
Toughened Glass - Consumption
Low Power

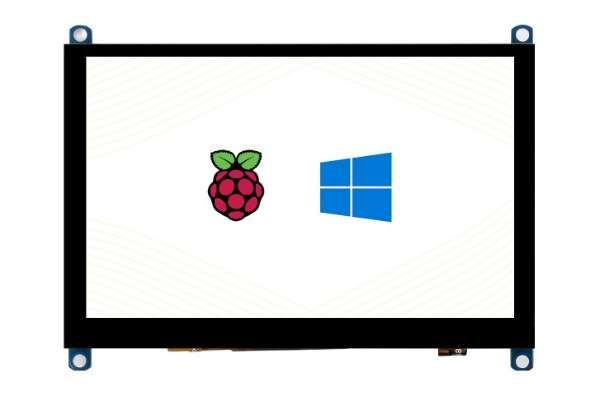

Device & System Support
Raspberry Pi
Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch, driver free
Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi Zero W
Working With Mini PC

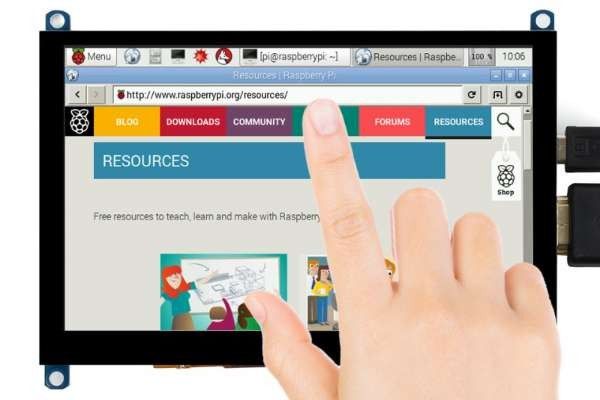

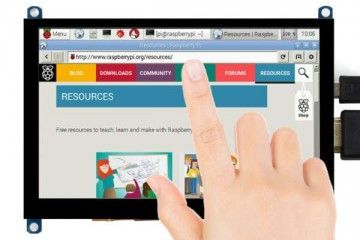

Touch Control
1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.
Appearance And Dimensions
Specifikacije
Glavno
Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI
Dimenzije
Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
