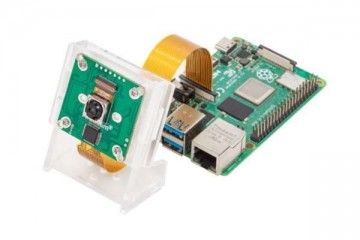

ARDUCAM PIVARIETY 21MP IMX230 COLOR CAMERA MODULE FOR RPI 4B, 3B+, 3A+, CM3/CM4 AND JETSON NANO/XAVIER NX, ARDUCAM B0324

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: ARDUCAM
  • Id številka: 3441/
125,39 €

Overview

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, lens options. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White White Balance, Auto Gain Control, Lens Shading Correction, etc.

Applications:

  • UAV/Drones/FPV camera
  • Machine Vision
  • Robotics
  • IoT
  • Face Recognition
  • Defect Detection

Specifications:

Image Sensor 21MP IMX230
Optical Size 1/2.3”
Resolution 21MP 5344×4016
Frame Rates 5344×4012@9 fps, 3840×2160@10 fps, 2592×1944@15 fps, 2656×2004@30 fps, 1920×1080@30 fps, 1280×960@120 fps, 1280×720@120 fps, 640×480@120 fps
Pixel Size 1.12 μm x 1.12 μm
Focal Length 4.77mm
F.NO 1.75±5%
Focus Type Motorized focus, programmable focus control
Field of View(FOV) 64°(H)
IR Sensitivity Integral IR-cut filter, visible light only
Output Format RAW10
ISP Output Format JPG, YUV420, RAW, DNG; MJPEG, H.264
Output Interface 2-lane MIPI serial output

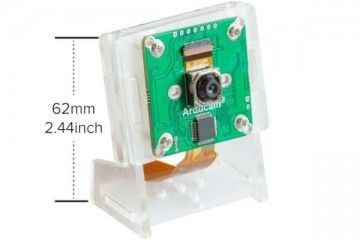

Camera Board Size 38mm x 38mm

Package Including

  • 1 x Arducam 21MP IMX230 ISP Camera Module
  • 1 x 150mm 22pin 0.5mm FPC cable
  • 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
  • 1 x acrylic case kit with assembly accessories

Documentation:

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
