11.9INCH CAPACITIVE TOUCH SCREEN LCD, 320×1480, HDMI, IPS, TOUGHENED GLASS COVER, WAVESHARE 19454
- Zaloga DA, 2 kos/ov
- Dobava 7 dni
- Znamka: WAVESHARE
- Id številka: 3457/

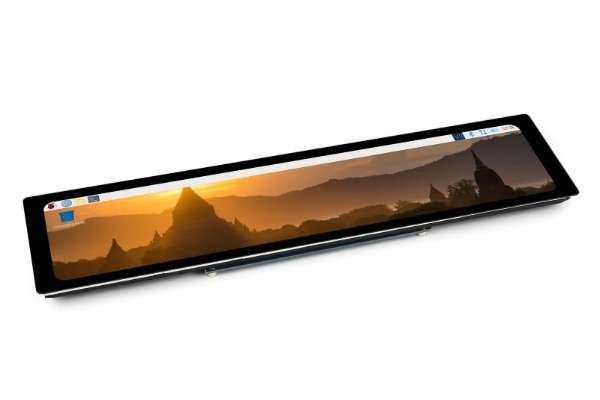

11.9" HDMI Touch Display
- Size
11.9" - Resolution
320×1480 - Display Interface
HDMI - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive - Touch Points
5-point - Touch Port
USB - Touch Panel
Toughened Glass - Audio Output
3.5mm Jack
The display orientation is portrait by default, 320×1480 resolution (H×V). Change the software config for landscape display.
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free
Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC
Display
IPS Panel
Touch Control
1) up to 5-point touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.
Appearance And Dimensions
Specifikacije
Glavno
Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI
Dimenzije
Dolžina
99 mm
Širina
207 mm
Višina
208 mm
