160X80, GENERAL 0.96INCH LCD DISPLAY MODULE, IPS, HD, WAVESHARE 15868
- Zaloga NE
- Dobava 7 dni
- Znamka: WAVESHARE
- Id številka: 3491/
Overview

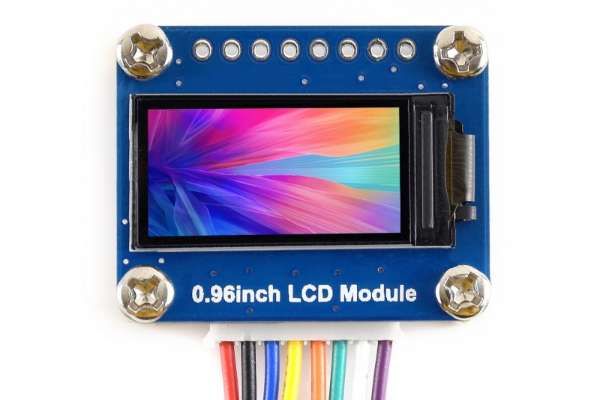

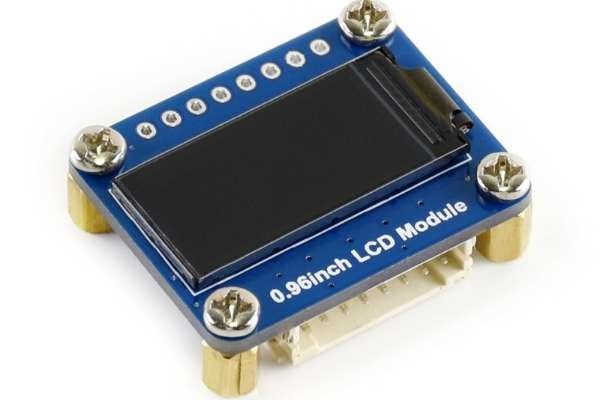

This is a general LCD display Module, IPS screen, 0.96inch diagonal, 160x80 HD resolution, with embedded controller, communicating via SPI interface.
Features
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
- Driver: ST7735S
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 160x80
- Backlight: LED
- Operating voltage: 3.3V/5V

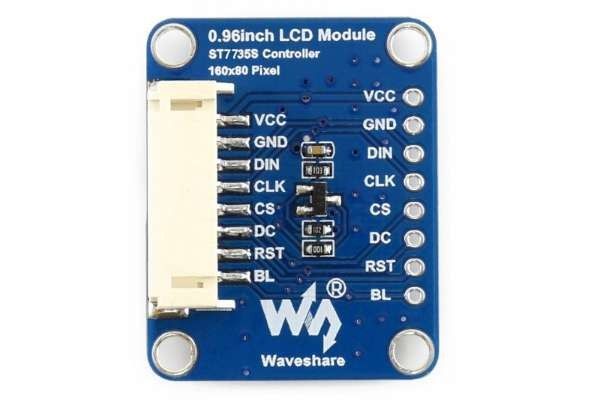

Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3V/5V input) |
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Dimensions
