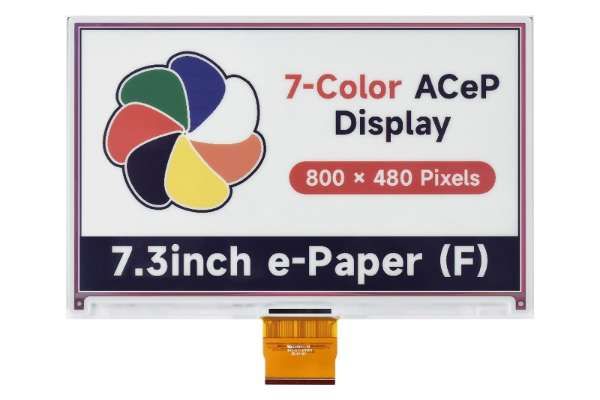

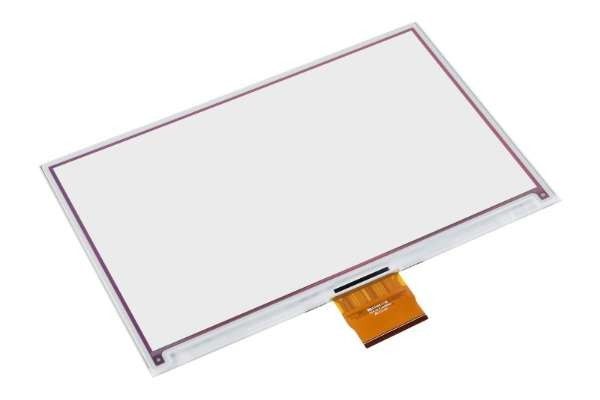

7.3INCH ACEP 7-COLOR E-PAPER E-INK RAW DISPLAY, 800×480 PIXELS, WAVESHARE 23433

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3535/
74,05 €

7.3″ 7-Color E-Paper

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...


    • Size7.3″
    • Resolution800×480
    • Viewing Angle>170°
    • Display Color7-color
    • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
Features At A Glance
  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V DISPLAY COLOR 7-Color
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 170.20 × 111.20 × 0.91mm FULL REFRESH TIME 35s
DISPLAY SIZE 160 × 96mm REFRESH POWER
DOT PITCH 0.2 × 0.2 mm STANDBY CURRENT
RESOLUTION 800×480 pixels VIEWING ANGLE >170°
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application Examples

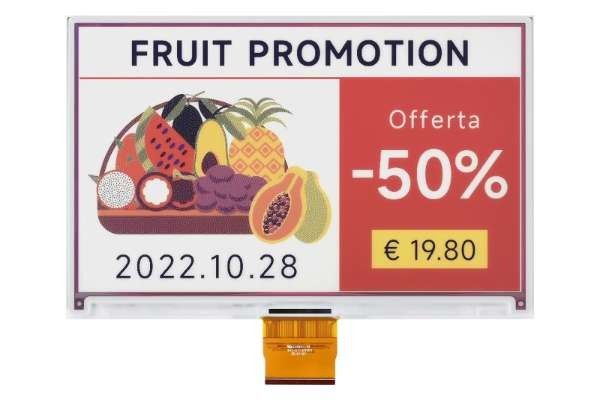

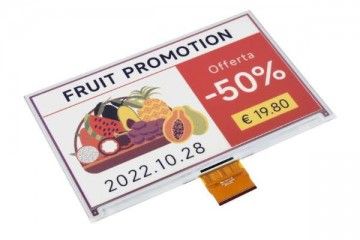

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
