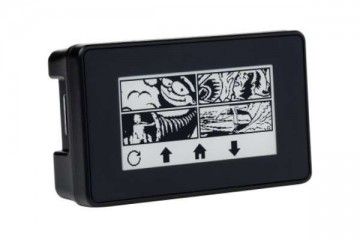

2.13INCH TOUCH E-PAPER E-INK DISPLAY FOR RASPBERRY PI ZERO, 250×122, ABS CASE, WAVESHARE 20716

  • Zaloga DA, 1 kos/ov
  • Znamka: WAVESHARE
  • Id številka: 3561/
29,15 €

2.13" TOUCH E-PAPER WITH CASE

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Specialized for Raspberry Pi Zero / Zero W


  • Size2.13"
  • Resolution250×122
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • Touch TypeCapacitive
  • Touch Points5-Points
  • Touch PortI2C
  • Touch PanelToughened Glass
  • CommunicationSPI
  • Power ConsumptionUltra Low
  • Display DurationPersists without Power
  • Display PanelE-paper
  • ExperiencePaper-like
  • Comfortably ReadingEye Care, No Bluelight
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support
  • EnclosureABS Dull Polish
Features At A Glance
  • 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels
  • Supports waken up by user-defined gesture
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W
  • Comes with development resources and manual (examples for Raspberry Pi)
Specifications
OPERATING VOLTAGE 3.3V GREY SCALE 2
INTERFACE 3-wire SPI, 4-wire SPI PARTIAL REFRESH TIME 0.3s
OUTLINE DIMENSIONS 69.15 x38.90mm FULL REFRESH TIME 2s
DISPLAY SIZE 48.55 x23.70mm REFRESH POWER 26.4mW(typ.)
DOT PITCH 0.194 x0.194mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 250×122 pixels VIEWING ANGLE >170°
DISPLAY COLOR black, white TOUCH POINT 5 (max)
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Fine Design, Precise Cut-Out

Highly Aligned Connectors, Rounded Corner Design, Slant Sides For Easily Standing

Heat Dissipation Holes On The Back

Combined With Thermal Tape, Effective Heat Dissipation

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Zero / Zero W

Raspberry Pi in the photo is NOT included.
Demonstration

Pinout Definition

Outline Dimensions
How To Install

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
