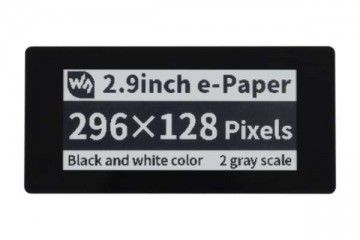

2.9INCH TOUCH E-PAPER E-INK DISPLAY HAT FOR RASPBERRY PI, 5-POINTS CAPACITIVE TOUCH, 296×128, BLACK / WHITE, SPI, WAVESHARE 19967
- Zaloga NE
- Dobava 7 dni
- Znamka: WAVESHARE
- Id številka: 3563/
Capacitive Touch, Partial Refresh, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for price tags, shelf labels, industrial instruments...
- Size
2.9" - Resolution
296×128 - Viewing Angle
>170° - Display Color
Black and White - Grey Scale
2 - Touch Type
Capacitive - Touch Points
5-Points - Touch Port
I2C - Touch Panel
Toughened Glass - Communication
SPI - Power Consumption
Ultra Low - Display Duration
Persists without Power - Display Panel
E-paper - Experience
Paper-like - Comfortably Reading
Eye Care, No Bluelight - Environment
Ambient Light Required - Display Type
Passively Reflective - Refreshing
Partial Refresh Support
- 2.9inch capacitive touch ePaper module, 296×128 resolution
- 5-points touch support, user-defined wakeup gesture
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
- Comes with development resources and manual (examples for Raspberry Pi)
| OPERATING VOLTAGE | 3.3V/5V | DISPLAY COLOR | black, white |
|---|---|---|---|
| INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 2 |
| OUTLINE DIMENSIONS | 89.10 × 42.70mm | PARTIAL REFRESH TIME | 0.3s |
| DISPLAY SIZE | 66.89 × 29.05mm | FULL REFRESH TIME | 2s |
| DOT PITCH | 0.227 × 0.226mm | REFRESH POWER | 26.4mW (typ.) |
| RESOLUTION | 296×128 pixels | STANDBY CURRENT | |
| TOUCH POINTS | 5 | VIEWING ANGLE | >170° |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Compatible With Raspberry Pi Series Boards
I2C Bus For Touch Panel, SPI Bus For Display
| VCC | 3.3V/5V |
| GND | GND |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data / Command selection (high for data, low for command) |
| ERST | External reset, low active |
| BUSY | Busy status output, high active |
| INT | Touch controller interrupt pin |
| SCL | Touch controller I2C clock pin |
| SDA | Touch controller I2C data pin |
| TRST | Touch controller reset, low active |
| EN | Touch control power supply enable (optional), high active |
The Touch Control Power Supply Is Determined By The Position Of 0R Resistor
| 0R RESISTOR POSITION | TOUCH CONTROL POWER SUPPLY | DESCRIPTION |
|---|---|---|
| A | VCC | always powered by VCC (default) |
| B | EN | controlled by user I/O |
| C | VEN | controlled with ePaper (ERST) |
| NC | GND | no power supply for touch control |
