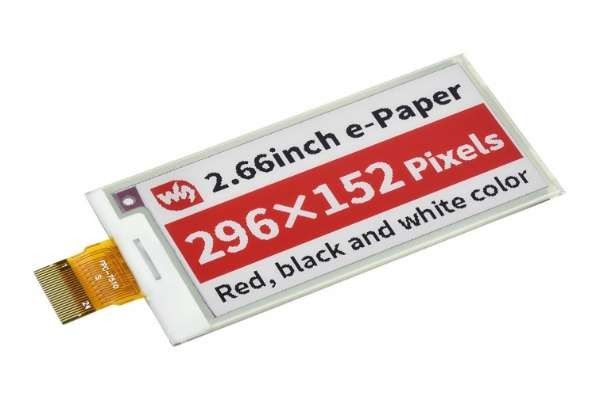

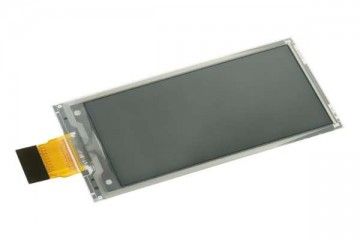

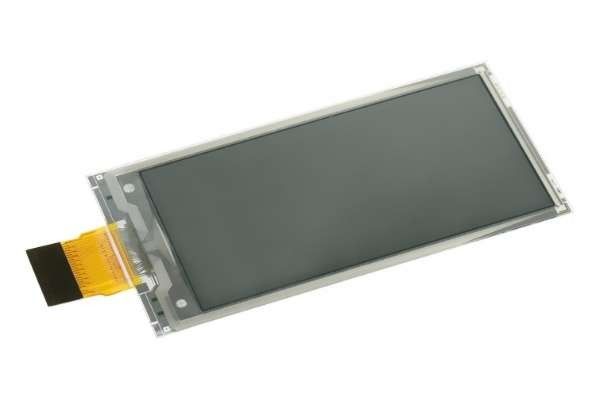

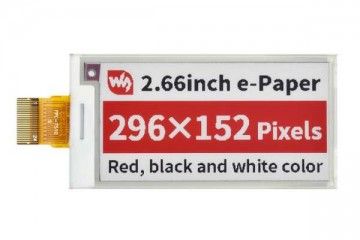

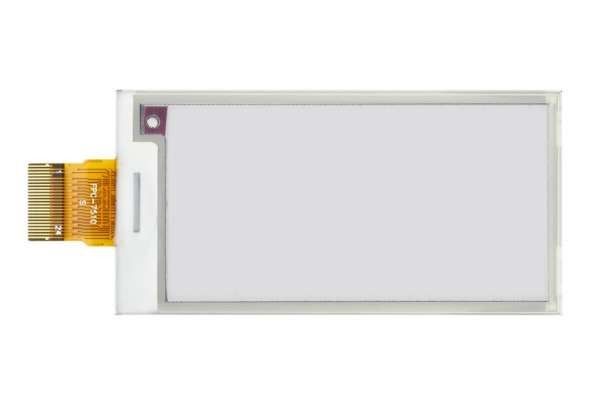

2.66INCH E-PAPER (B) E-INK RAW DISPLAY, 296×152, RED / BLACK / WHITE, SPI, WITHOUT PCB, WAVESHARE 18890

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3569/
11,25 €

2.66" E-PAPER (B)

Low Power, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...


    • Size2.66"
    • Resolution296×152
    • Viewing Angle>170°
    • Display ColorRed / Black / White
    • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V DISPLAY COLOR red, black, white
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 36.304 × 71.820 × 1.0mm FULL REFRESH TIME 15s
DISPLAY SIZE 30.704 × 60.088mm REFRESH POWER 16mW(typ.)
DOT PITCH 0.202 × 0.203mm STANDBY CURRENT
RESOLUTION 296 × 152 pixels VIEWING ANGLE >170°
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
