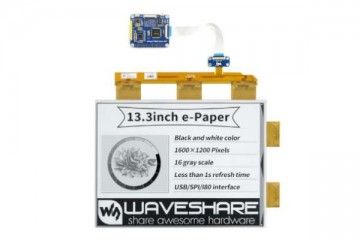

13.3INCH E-PAPER E-INK DISPLAY HAT FOR RASPBERRY PI, 1600×1200, BLACK / WHITE, 16 GREY SCALES, USB / SPI / I80, WAVESHARE 15853

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3571/
513,34 €

13.3" E-PAPER HAT FOR RASPBERRY PI

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for e-reader, eink monitor, industrial instruments...


    • Size13.3"
    • Resolution1600×1200
    • Viewing Angle>170°
    • Display ColorBlack and White
    • Grey Scale2-16 (1-4 bit)
  • CommunicationUSB/SPI/I80

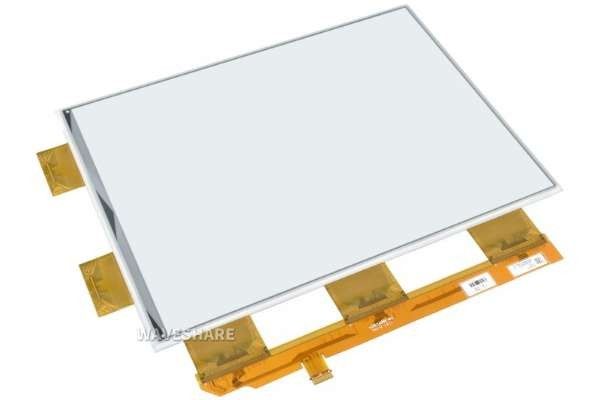

  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support
Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • USB/SPI/I80 interface, for connecting with controller boards like Raspberry Pi/STM32, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
OPERATING VOLTAGE 5V DISPLAY COLOR black, white
INTERFACE USB/SPI/I80 GREY SCALE 2-16 (1-4 bit)
OUTLINE DIMENSIONS 285.80 × 213.65mm FULL REFRESH TIME <1s
DISPLAY SIZE 270.40 × 202.80mm REFRESH POWER 0.77W (typ.)
DOT PITCH 0.169 × 0.169mm STANDBY POWER 0.5W (typ.)
RESOLUTION 1600 × 1200 pixels VIEWING ANGLE >170°

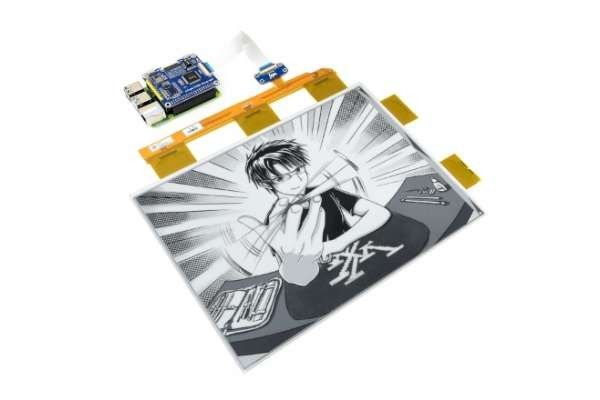

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

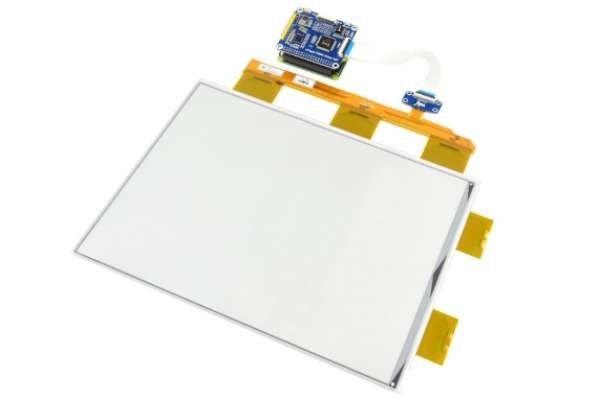

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards

Raspberry Pi in the photo is NOT included.
Onboard USB/SPI/I80 Control Interface

For Use With Controller Boards Like Raspberry Pi/STM32

SPI PINOUT
5V Power, 5V input
GND Ground
MISO SPI MISO pin
MOSI SPI MOSI pin
SCK SPI SCK pin
CS SPI chip selection, low active
RST External reset, low active
HRDY Busy status output, low active
Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions


Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
