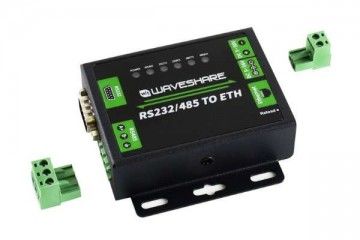

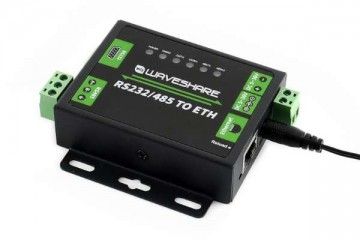

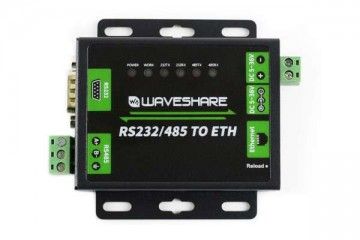

INDUSTRIAL RS232/RS485 TO ETHERNET CONVERTER FOR EU, WAVESHARE 16530

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3639/
54,14 €

Overview:

The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.

Features:

  • M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
  • 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
  • Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
  • Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
  • Multi indicators, for monitoring communicating and working status
  • Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
  • Supports Modbus, suit for industrial application
  • Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
  • Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
  • Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
  • Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
  • Supports customized webpage, allows user to customize the module configuration page
  • Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
  • KeepAlive mechanism, detects broken connection, auto re-connecting
  • Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
  • Supports DNS domain name resolution, configurable DNS server
  • Supports DHCP, auto-obtained IP or static IP
  • Firmware is upgradable via the network
  • Restore to factory settings via software and/or hardware
  • Comes with default MAC address, which is customizable
  • Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
  • Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications:

Ethernet:

  • Connector: 4-pin RJ45
  • Communication rate: 10/100Mbps
  • Interface protection: 2KV electromagnetic isolation
  • Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket
  • TX cache: 16Kbyte
  • RX cache: 16Kbyte

RS485/RS232:

  • Connector:
  • RS485: screw terminal (A+, B-, GND)
  • RS232: DB9 male
  • Data bit: 5bit, 6bit, 7bit, 8bit
  • Stop bit: 1, 2
  • Parity bit: None, Odd, Even, Mark, Space
  • Baudrate: 600bps~230.4Kbps
  • TX cache: 2Kbyte
  • RX cache: 2Kbyte
  • Hardware flow control: RTS/CTS
  • Interface protection:
  • RS485: 2KV ESD protection, lightningproof, anti-surge, over-current protection
  • RS485 pull up/down registers: 2.2KΩ

Power:

  • Power supply: 5.0~36.0V (5V recommended)
  • Operating current: 86.5mA (@5V)
  • Power consumption: <1W
  • Interface protection: reverse-proof, ESD protection, anti-surge

Environment:

  • Operating temperature: -40~85°C
  • Storage temperature: -40~105°

RS232/485 TO ETH dimensions
