TTL UART TO ETHERNET MINI MODULE, CASTELLATED HOLES WITH IMMERSION GOLD DESIGN, HIGHLY INTEGRATED PACKAGING, WAVESHARE 24276

  • Zaloga DA, 5 kos/ov
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3641/
14,59 €

TTL UART To Ethernet Mini Module

Compact size | Easy to integrate | Low power consumption

Faster To Be Integrated Into Industrial, IoT, And Security Applications

Compact And Easy Integration

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications

* This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.



Multi Communication Modes

Supports TCP Server / TCP Client / UDP Multicast / UDP Mode


Modbus Gateway Support

Suitable For Modbus Gridding Upgrade, Can Be Used With Specific Configuration Software

User-Defined Heartbeat/Registration Packet

Easy For Cloud Communication And Device Identification

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

Supports Web And Host Computer
Configuration

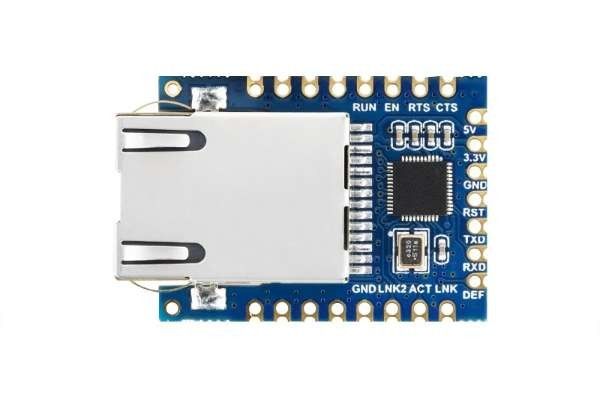

Interfaces And Indicators

Adapting Control Pins For Easy Embedding Or Connecting To User Devices And Various MCU Master Devices. With Multiple Indicators, Easy To Monitor The Operating Status Of The Module



Product Show




Outline Dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
