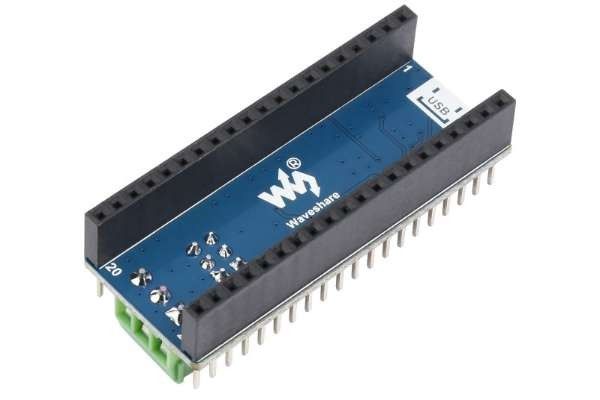

CAN BUS MODULE (B) FOR RASPBERRY PI PICO, ENABLING LONG RANGE COMMUNICATION THROUGH SPI, WAVESHARE 23775
- Zaloga NE
- Dobava 7 dni
- Znamka: WAVESHARE
- Id številka: 3644/
CAN Bus Module (B) For Pico
Enabling Reliable Long Range Communication For Raspberry Pi Pico With Other Devices
Comes with online development resources and manual
Features At A Glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Features CAN function, adopts SPI interface CAN controller MCP2515 with transceiver SIT65HVD230DR
- Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 3.3V~5V |
|---|---|
| CAN CONTROLLER | MCP2515 |
| CAN TRANSCEIVER | SIT65HVD230DR |
| COMMUNICATION BUS | SPI |
| BAUDRATE | 5K~1000Kbps |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
* Raspberry Pi Pico is NOT included.

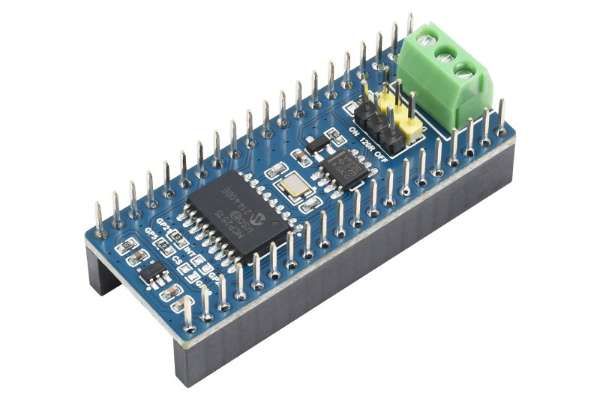

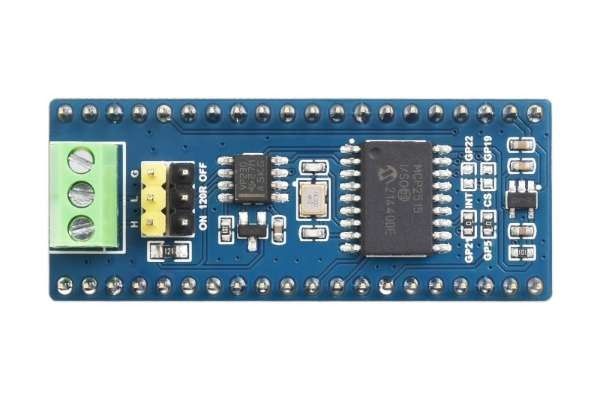

What's On Board
- RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO - MCP2515
Second generation standalone CAN controller - SIT65HVD230DR
3.3V CAN transceiver
- Terminal resistor selection
ON: connected to 120R matching resistor
OFF: disconnected from 120R matching resistor - CAN bus terminal
Pinout Definition
Product Show
Outline Dimensions
