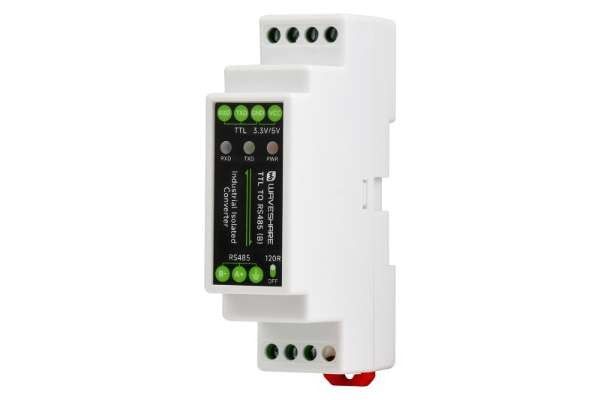

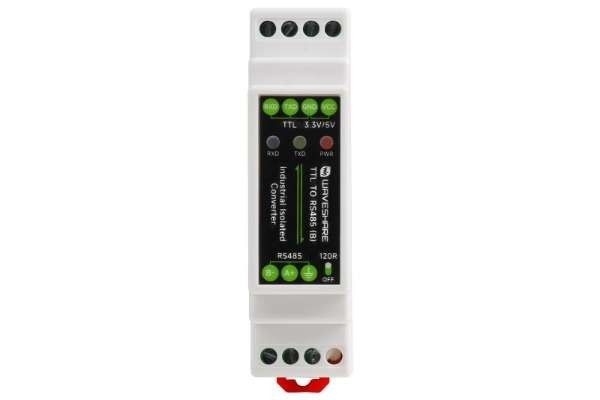

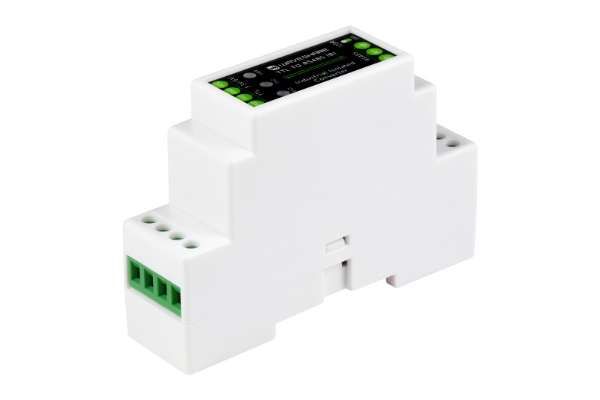

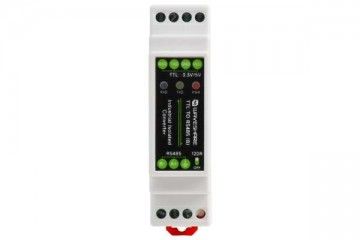

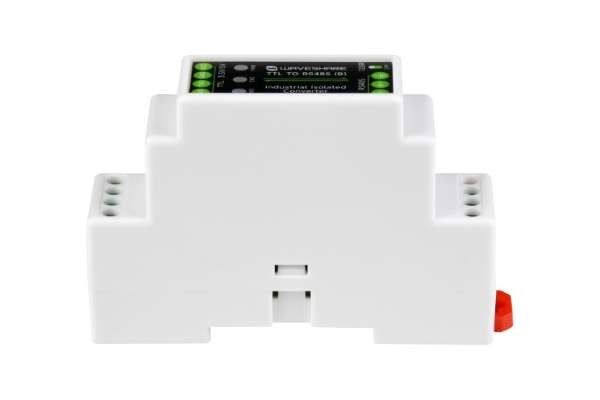

Galvanic isolated Serial Port Converter
PRODUCT TYPE | Galvanic isolated TTL To RS485 converter | |
---|---|---|
POWER SUPPLY INTERFACE | Power supply | 3.3V ~ 5V |
Protection | over-voltage, reverse-proof | |
DEVICE PORT | TTL/RS485 standard compatible | |
TTL | Connector | screw terminal |
Transmission distance | about 10m | |
Transmission mode | point-to-point | |
RS485 | Connector | screw terminal |
Protection | 600W lightningproof and surge-suppress, 15KV ESD protection | |
Terminal resistor | 120R, enabled/disabled via switch | |
Transmission Distance | About 1.2km | |
Transmission Mode | point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
APPEARANCE | Case | Rail-mount ABS case, suitable for 35mm DIN rail |
Dimensions | 91.6 × 58.7 × 23.3mm |
Converting The TTL Signal Into Balanced Differential RS485 Signal
For Interface Converting, Expanding Nodes And Long-Distance Communication
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance
TOP SIDE SCREW TERMINAL | BOTTOM SIDE SCREW TERMINAL | ||
---|---|---|---|
VCC | Power Input DC 3.3V~5V power supply |
DIP SWITCH | 120R enable switch |
GND | Ground | SGND | RS485 signal ground |
TXD | TTL transmit data pin | A+ | RS485 differential signal positive |
RXD | TTL receive data pin | B- | RS485 differential signal negative |
TTL convert to RS485, point to point, half-duplex communication, suitable for interface conversion
TTL convert to RS485, point-to-multipoint, half-duplex communication, suitable for expanding nodes
Two groups TTL To RS485 conversion, point-to-point, half-duplex communication, suitable for extending the communication distance of TTL
The TTL To RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require TTL To RS485 conversion such as Industrial Automation and IoT.
