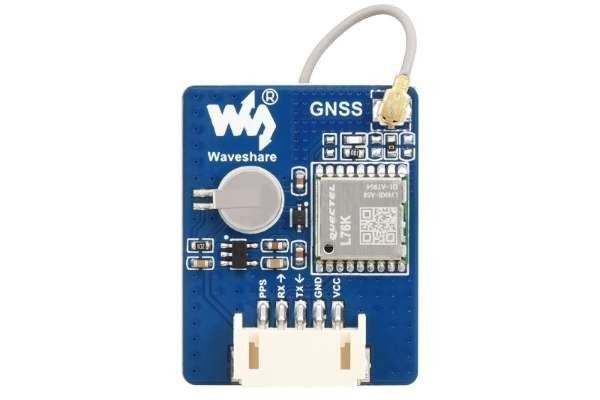

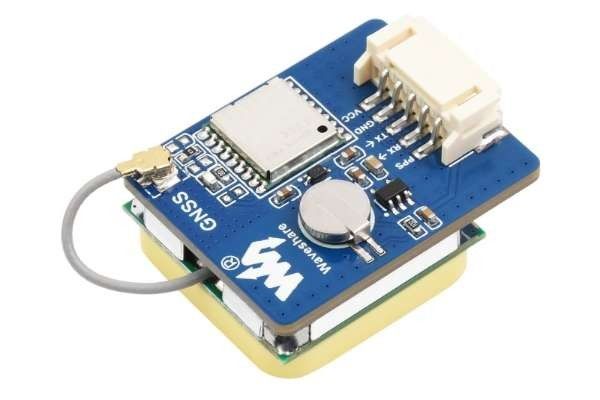

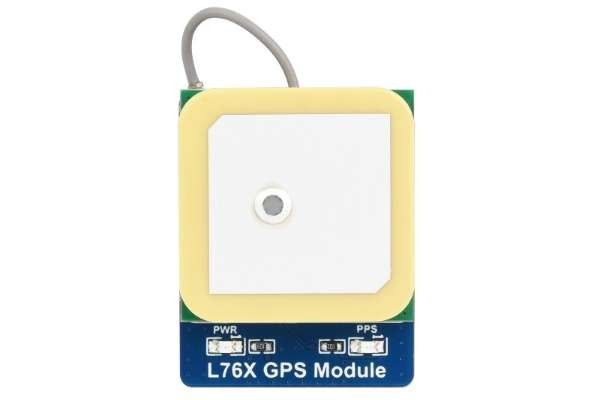

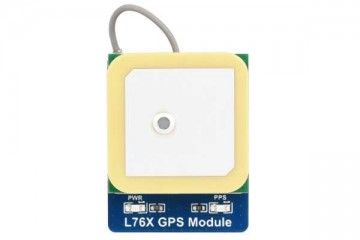

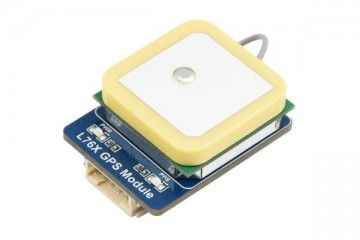

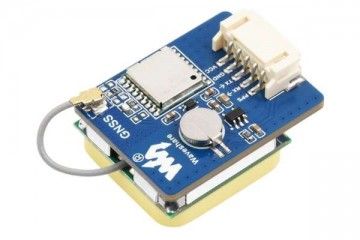

L76K MULTI-GNSS MODULE, SUPPORTS GPS, BDS, QZSS, WAVESHARE 23721

The L76K GPS Module is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, built-in low-noise amplifier and sound surface filter, provides a good positioning experience of fast, accurate, high-performance.

• Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
• Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
• Built-in SAW Filter for enhanced noise reduction performance
• Support AGNSS
• Support 1PPS
• UART communication baudrate: 4800~115200bps (9600bps by default)
• Onboard rechargeable Li battery MS621FE, for preserving ephemeris information and hot starts
• 2x LEDs for indicating the module working status
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
