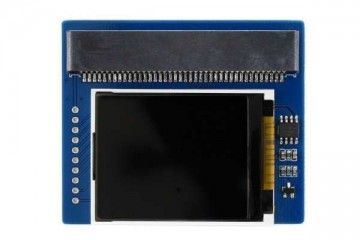

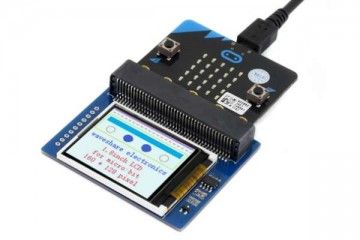

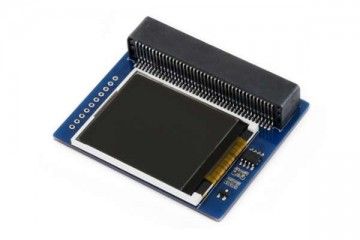

Introducing a vividly colorful display module crafted specifically for the BBC micro:bit, boasting an impressive 1.8-inch diagonal and 160x128 pixel resolution. But wait, tired of the mundane 5x5 LED matrix? It's time to level up and add a tiny monitor to your micro:bit setup - and this display module is the perfect choice.
Featuring a micro:bit edge connector that plugs in directly, it also comes equipped with an embedded ST7735S driver that supports a whopping 65K colors. Say goodbye to memory woes with the onboard SRAM 23LC1024, which acts as a display cache. With its SPI interface, it takes up only a few IO pins, and the backlight can be adjusted via PWM.
The display module even has reserved solder pads for control interface, making it a breeze to connect with Arduino/Nucleo boards. And the best part? It comes with all the development resources you need, including a micro:bit graphical demo and user manual.
Check out these impressive specifications: the driver is ST7735S, the resolution is 160x128, and the display color is RGB, boasting 65K colors. Operating at a voltage of 3.3V and measuring 61mm x 51.5mm in dimension, this display module is sure to make your micro:bit project stand out from the rest.
Features:
Specifications:

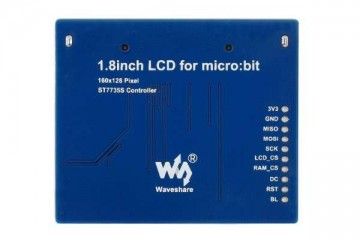

PIN | MICRO:BIT PIN | DESCRIPTION |
---|---|---|
3V3 | 3V3 | Power |
GND | GND | Ground |
MISO | P14 | SPI data master input/slave output |
MOSI | P15 | SPI data master output/slave input |
SCK | P13 | SPI clock input |
LCD_CS | P16 | LCD chip selection |
RAM_CS | P2 | SRAM chip selection |
DC | P12 | LCD data/command |
RST | P8 | LCD reset |
BL | P1 | LCD backlight |
