USB TO CAN ADAPTER MODEL A, STM32 CHIP SOLUTION, MULTIPLE WORKING MODES, MULTI-SYSTEM COMPATIBLE, WAVESHARE 23635

23,24 €

Količina

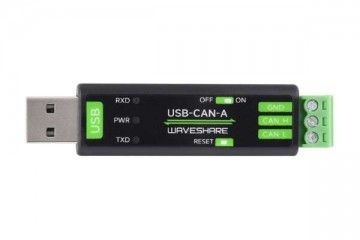

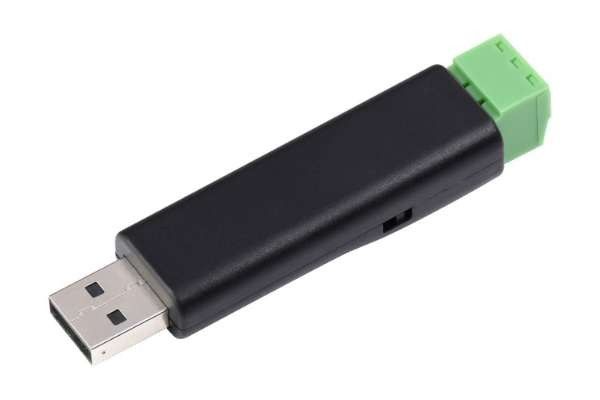

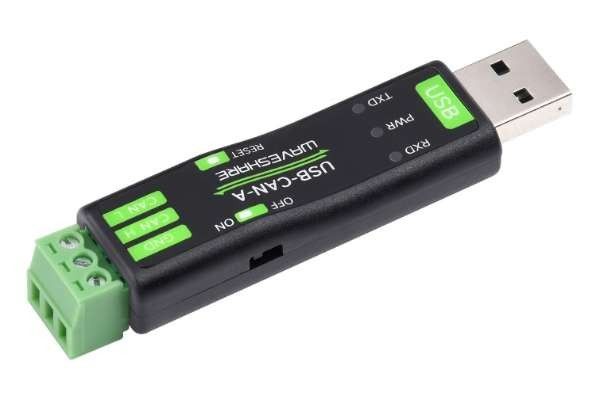

USB To CAN Adapter Model A

STM32 Chip Solution, Multi-System Compatible, Multiple Working Modes

Features At A Glance

Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
CAN baud rate is configurable in the range of 5Kbps-1Mbps
Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
Data can be saved as TXT or Excel
Supports CAN bus detection for status checking
Sending/receiving CAN data with time scale, allows sequentially displaying
Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
Supports setting working parameters by configuration software or serial command, can be saved after power off
Adopts STM32 chip solution, stable and reliable communication
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
Comes with master computer software for Windows system, easy to use
Easy secondary development, just need to modify the sending and receiving commands
