Serial port conversion for industrial, agricultural, IoT, etc.

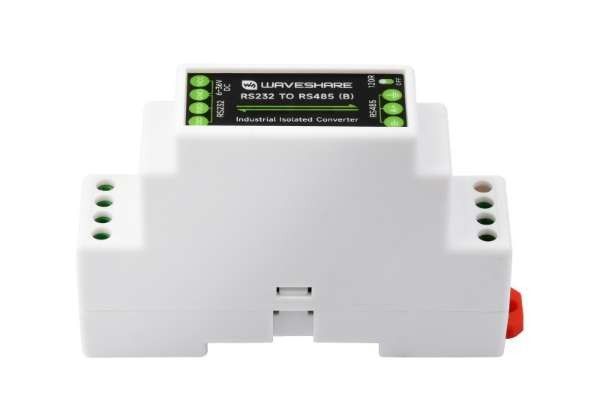

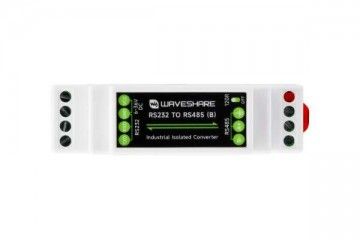

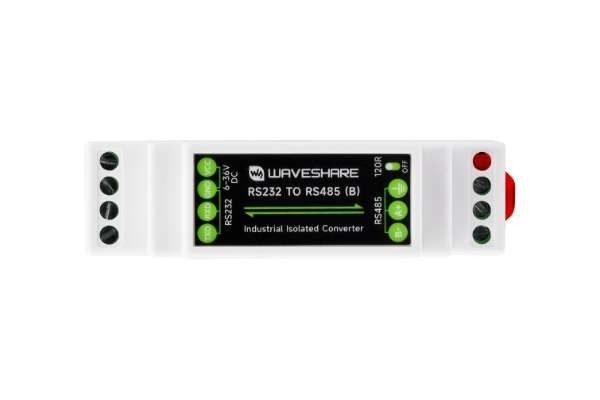

PRODUCT TYPE | Active electromagnetic isolated RS232 TO RS485 asynchronous bi-directional converter | |
---|---|---|
POWER SUPPLY INTERFACE | Power supply | 6~36V DC |
Protection | Anti-reverse | |
BAUDRATE | 300 ~ 115200bps | |
DEVICE PORT | RS232/RS485 standard compatible | |
RS232 | Connector | screw terminal |
Transmission distance | about 15m | |
Transmission mode | point-to-point | |
RS485 | Connector | screw terminal |
Direction control | Hardware automatic control | |
Protection | 600W lightningproof and surge-suppress, 15KV ESD protection | |
Terminal resistor | 120R, enabled/disabled via switch | |
Transmission Distance | About 1.2km | |
Transmission Mode | point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |

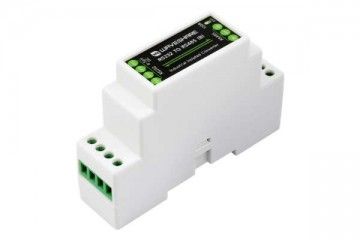

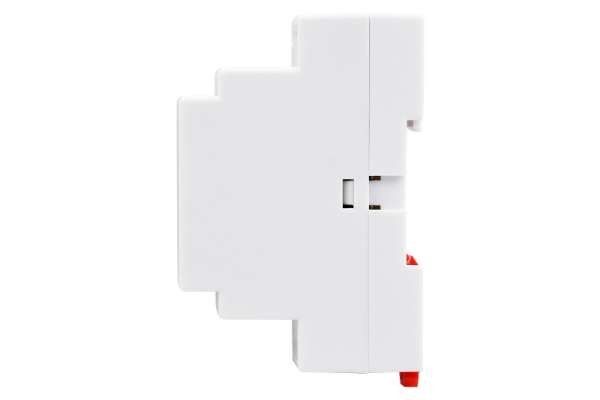

APPEARANCE | Case | Rail-mount ABS case |
Dimensions | 91.6 × 23.3 × 58.7mm |
Converting The RS232 Signal Into Balanced Differential RS485 Signal
For Interface Converting, Expanding Nodes And Long-Distance Communication
Stable Transmission On Rate Of 300~115200bps, About 1200m Transmission Distance Of RS485, About 15m Transmission Distance Of RS232
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely
Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance
RS232 To RS485 Conversion
Access to a host, PLC or other devices with RS232 port, the RS232 can be converted to RS485 port for point-to-point half-duplex communication with external RS485 devices.
Access to a host, PLC or other devices with RS232 port, the RS232 can be converted to RS485 port for point-to-multipoints half-duplex communication with external RS485 devices.
The RS232 TO RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require RS232 to RS485 conversion such as Industrial Automation and IoT.
