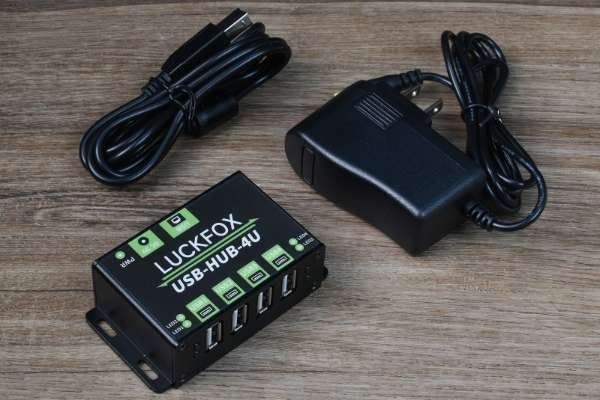

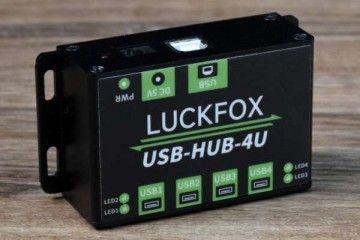

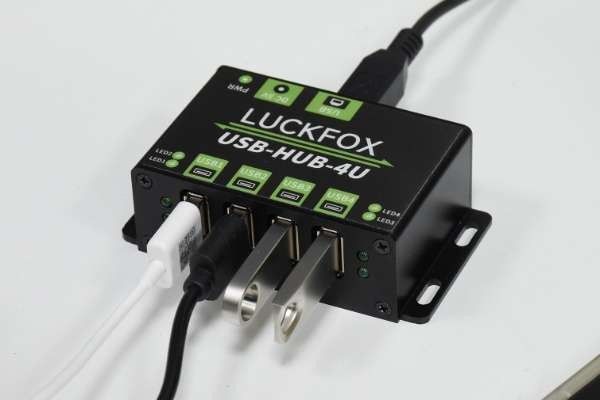

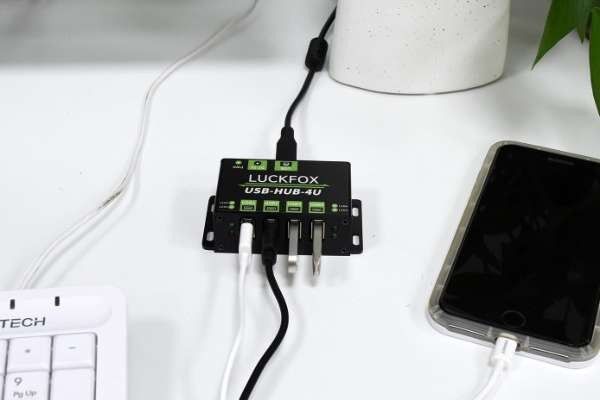

LUCKFOX INDUSTRIAL GRADE USB HUB, EXTENDING 4X USB 2.0 PORTS, LUCKFOX 23468

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3662/
28,08 €

Features:

Introducing a 4-port USB hub designed for industrial applications, compatible with USB 2.0 and 1.1 standards. The hub is equipped with an industrial-grade HUB chip, utilizing STT technology to provide stable and smooth concurrent connections across all four USB ports. Each USB port features ESD protection to prevent electrical surge damage and data loss, as well as over-voltage protection to safeguard connected devices from high voltage power inputs.

The USB hub also incorporates multiple protection circuits, including over-voltage, over-current, short circuit, over-temperature, reverse current, under-voltage lock-out, 8KV ESD protection, and filtering protection. LED indicators allow users to monitor the operating status of the power supply and USB ports. The hub is housed in an industrial-grade metal case with mounting holes for easy installation.

Specifications:

  • Standard: USB 2.0
  • Data Rate: up to 480Mbps
  • USB Hub Input: Operating voltage: 5V; Connector: USB-B
  • USB Output: Operating voltage: 5V@Imax:1.2A; Connector: USB-A
  • External Power: Power supply voltage: DC 5V; Connector: DC jack
  • Operating Environment: -40°C ~ 85°C
  • OS Support: Mac OS (8.6 or above), Linux (2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
