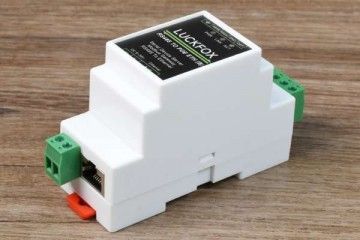

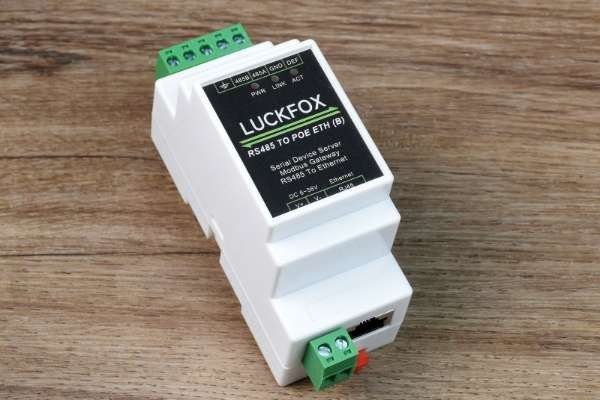

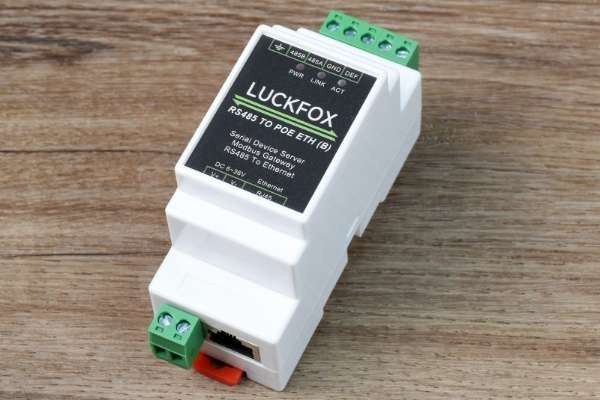

INDUSTRIAL SERIAL SERVER, LUCKFOX RS485 TO RJ45 ETHERNET, TCP/IP TO SERIAL, RAIL-MOUNT SUPPORT, WITH POE FUNCTION, LUCKFOX23466

Features at a Glance:

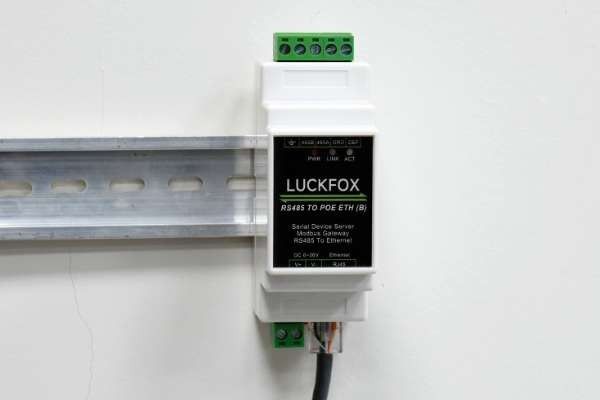

Introducing the LUCKFOX RS485 to POE ETH (B), a versatile RS485 device data acquisitor and IoT gateway specifically designed for industrial environments. This multi-functional device combines a serial server, Modbus gateway, MQTT gateway, RS485 to JSON converter, and more. It comes equipped with both RS485 and Ethernet ports, with an optional Power over Ethernet (PoE) function. The module utilizes screw terminals for power input and boasts a rail-mount flame-retardant case for easy installation in a compact form. Ideal for data acquisition, IoT gateway, safety and security IoT, and intelligent instrument monitoring applications.

Key Features:

• Bi-directional transparent data transmission between RS485 and Ethernet
• Ability to combine multiple rail-mounted serial servers
• Suitable for Modbus gridding upgrade
• NTP protocol support
• Multiple configuration methods

Specifications:

• Product: LUCKFOX RS485 to POE ETH (B)
• Product Type: Serial server, Modbus Gateway, MQTT Gateway
• Basic Function: Bi-directional transparent data transmission between RS485 and Ethernet
• Communication Interface: RS485 port x 1, Ethernet port x 1
• Power Supply: 6 ~ 36V DC screw terminal, or PoE port
• Isolation Protection: Power isolation, Signal isolation

Communication:

• Ethernet: PoE network port, support IEEE 802.3af standard
• 10/100M auto-negotiation RJ45 connector, 2 KV surge protection
• Serial Port: Isolated RS485

Serial Specifications:

• Baud Rate: 300 ~ 115200 bps
• Parity Bit: none, odd, even, mark, space
• Data Bit: 5 ~ 9 bits
• Flow Control: N/A

Software:

• Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
• Configuration: host, web browser, device management functions library
• Communication Method: TCP/IP direct communication, VCOM
• Operating Mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast

Environment Requirements:

• Operating Temperature: -40°C ~ 85°C
• Storage Temperature: -45°C ~ 125°C
• Humidity Range: 5% ~ 95% relative humidity
• Dimensions: L × W × H: 87 × 36 × 59 mm
