INDUSTRIAL GIGABIT POE SPLITTER, METAL CASE PROTECTION, 5V 2.5A TYPE-C OUT, WAVESHARE 20987

  • Zaloga NE
  • Dobava 7 dni
  • Znamka: WAVESHARE
  • Id številka: 3677/
20,98 €

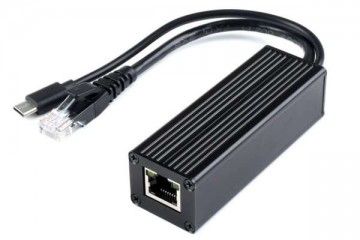

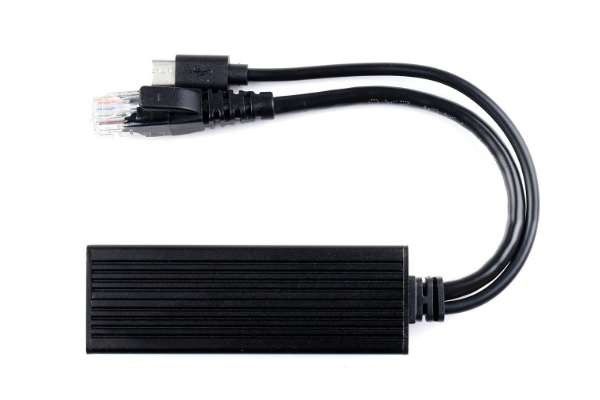

Industrial Gigabit PoE Splitter

5V 2.5A Type-C power output

IEEE 802.3af/at-compliant Gigabit Ethernet


Features At A Glance
  • Incorporates SD4950 chip, high-efficiency, high-safety, stable-performance
  • 10/100/1000Mbps auto-negotiation Ethernet port
  • 802.3af/at-compliant PoE (Power over Ethernet) standard
  • Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
  • 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
  • Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
POWER SUPPLY supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
POE INPUT VOLTAGE 37V ~ 57V
TYPE-C OUTPUT 5V 2.5A (MAX)
CABLE Cat-5 UTP
STANDARD IEEE 802.3 af/at PoE Ethernet
DATA RATE 10/100/1000Mbps
LED INDICATOR PoE power input indicator
DIMENSIONS 86 × 30 × 25mm (l × w × h)
OPERATING TEMPERATURE -40℃ ~ 85℃



Switching Mode Power Supply (SMPS)

Isolated Circuit Protection, Effectively Protecting The Powered Device

Industrial Grade Protection Case

Aluminum Alloy Case, Sturdy And Rugged, Higher Protection Level, Better Heat Dissipation

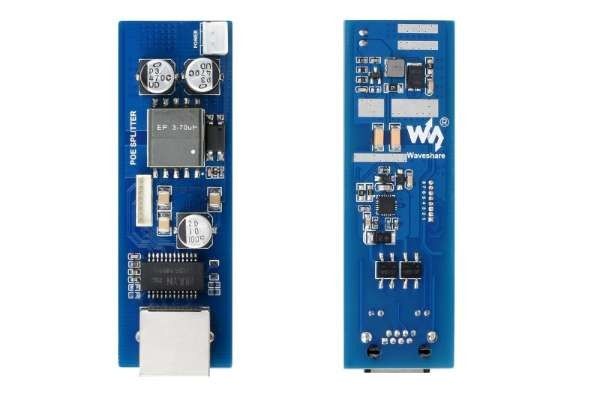

Interface Introduction

Application Examples

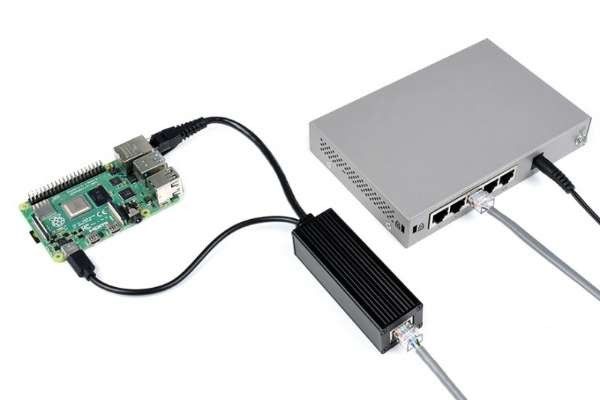

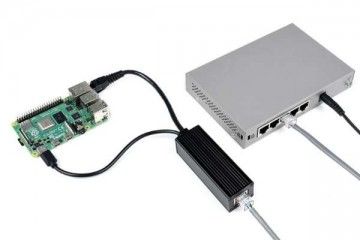

Powering The Raspberry Pi Or Other 5V-Powered Network Devices By PoE Switch


for reference ONLY, Raspberry Pi and switch are NOT included.
Outline Dimensions

Specifikacije

Glavno

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory
512MB LPDDR2 SDRAM
Connectivity
2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access
Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI

Dimenzije

Dolžina
99 mm
Širina
207 mm
Višina
208 mm
Opozorilo! Vsebina lahko vsebuje napake.
