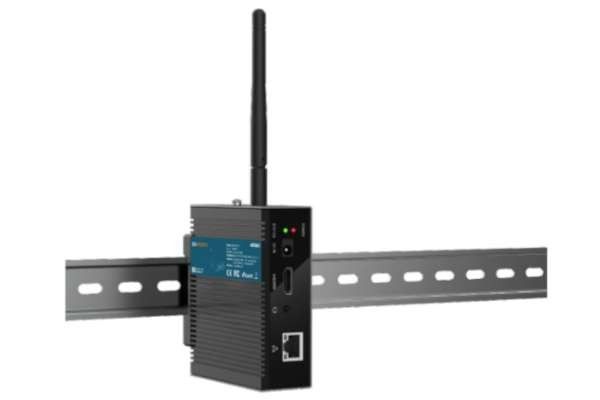

The ED-IPC2010 is a computer designed for industrial applications, built around the Raspberry Pi CM4. This model is fully compatible with both the hardware and software of Raspberry Pi, with dimensions only slightly exceeding those of the Pi4. Numerous enhancements have been made to suit industrial applications; an aluminum alloy shell has been added to significantly improve heat dissipation, and the board is equipped with additional encryption chips, RTC, and other common modules. The multifunctional capabilities of the IPC2100 make it suitable for a variety of applications, including multimedia entertainment, AI, smart meters, panoramic displays, and smart living solutions.
Specifications:
*If you want different specification write to info@galago.si.
ED-IPC2010 VS Raspberry Pi 4B
Function | ED - IPC2010 | Raspberry Pi 4B |
CPU | Broadcom BCM2711 4-core Cortex A72 1.5GHz (ARM v8) 64-bit CPU | Quad-core, Cortex-A72, 1.5GHz ARM v8 64-bit CPU |
RAM | 1GB/2GB/4GB/8GB Options | 1GB/2GB/4GB/8GB |
eMMC | 8GB/16GB/32GB Options | - |
WiFi/BT | 2.4G/5.8G WiFi, Bluetooth BLE5.0 | 2.4G/5.8G WiFi, Bluetooth BLE5.0 |
Ehernet | 10/100/1000M Ethernet, POE support | 10/100/1000M Ethernet, PoE support |
SD Card | Support micro SD card as extended storage | Support micro SD card only as extended storage |
HDMI | 1x Standard HDMI Type A | 2 x micro HDMI |
USB |
2x Standard USB 3.0 interface
1x Standard USB 2.0 interface
|
2x Standard USB 3.0 interface
2x Standard USB 2.0 interface
|
RTC | Support for RTC functions | - |
Security Chip | On-board encryption chip ATECC608 | - |
Output power |
5V@1A wire-to-board connector output
12V@1A wire-to-board connector output
|
- |
Buzzer | 1x Buzzer | - |
40PIN Interface | Support Raspberry Pi standard 40PIN interface | Support Raspberry Pi standard 40PIN interface |
PoE | Support PoE interface | Support PoE interface |
Rpiboot Button | Set Compute Module 4 to enter burn-in mode | - |
Reset | One piece reboot to Compute Module 4 | - |
LED | Green (system status), Red (power) | Green (system status), Red (power) |
Input | 9 ~ 28V Support DC interface, optional Phoenix terminal interface | 5V DC |
Size | 103(L) x 80(W) x 35(H) mm | 89(L) x 56(W) x 24(H)mm |
Shell | CNC Shell, support DIN rail mount | Plastic/ metal case with a small heat sink on the CPU |
Antenna | PCB antenna/ external antenna | PCB antenna |
Operating Temperature | -25~60°C | 0~50°C |
OS | Compatible with the official Raspberry Pi OS standard system | Raspberry Pi OS Official Standard System |
